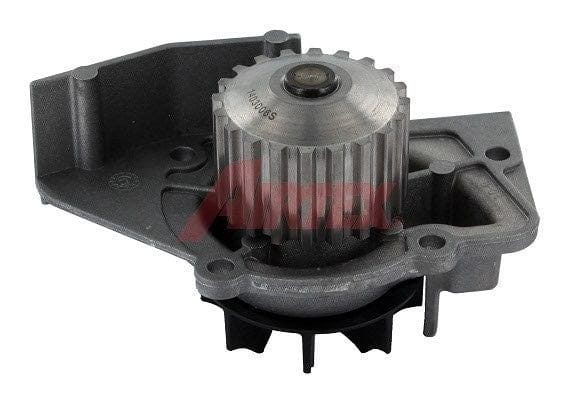

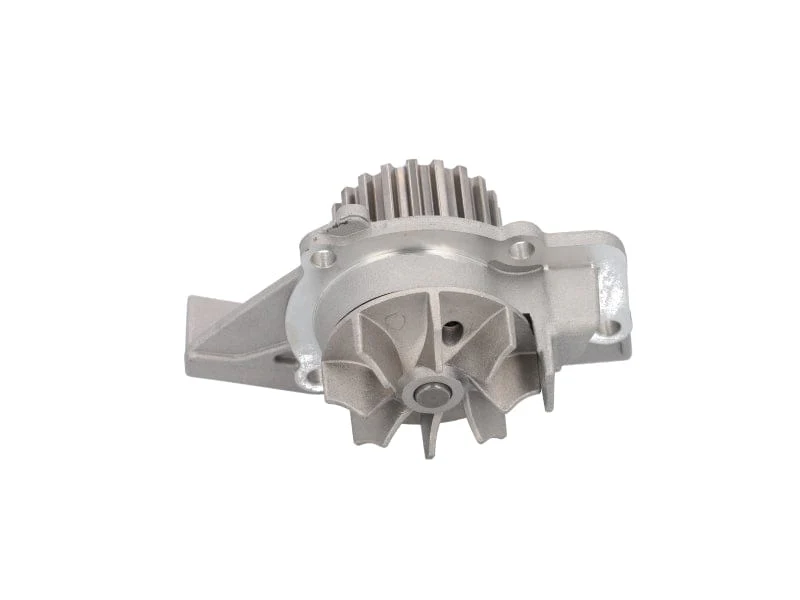

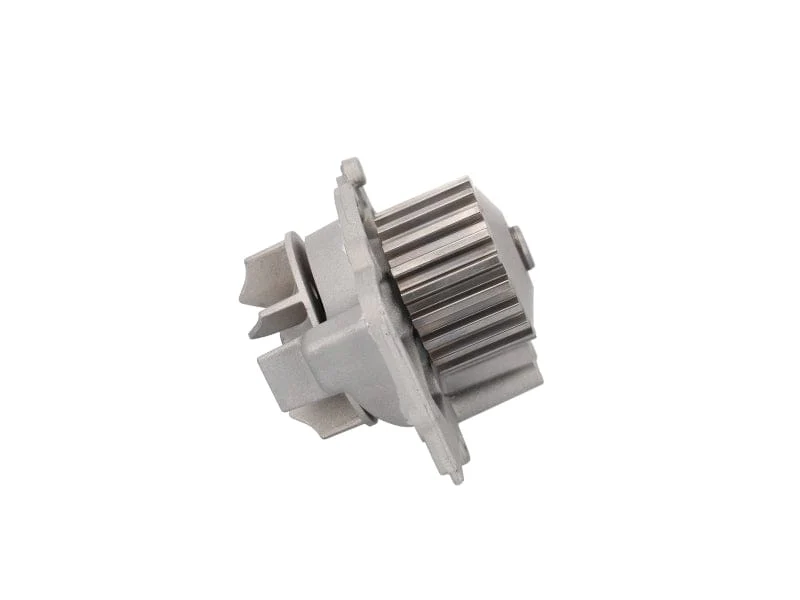

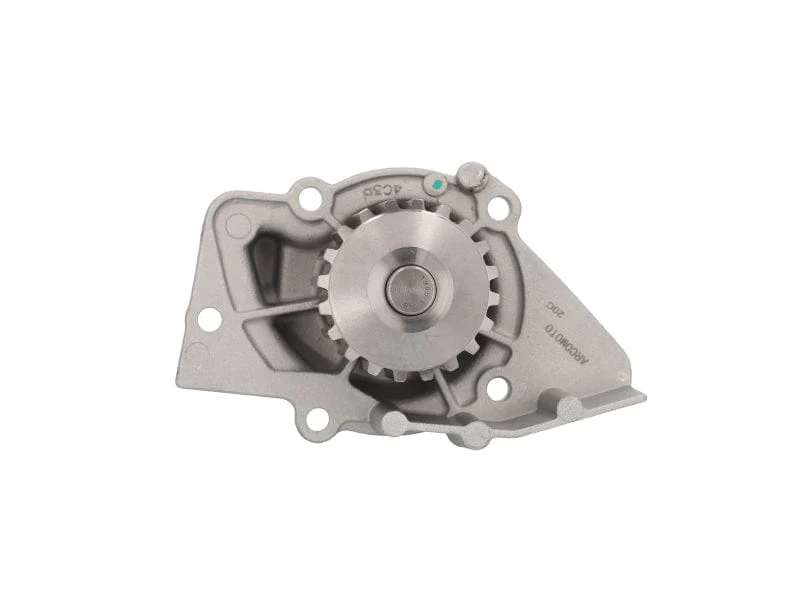

Water Pump for Citroen Xsara / Xsara Picasso and Peugeot 206 / 307 / 406 / Partner

1580R is a mechanical water pump for timing belt drive applications, supplied with gasket/seal. Do not use sealant when fitting.

Vehicle Compatibility

• Citroen Xsara 2.0 HDi (DW10ATED) 2002–2005
• Citroen Xsara Picasso 2.0 HDi (DW10ATED) 2002–2006
• Citroen Berlingo 1.9D (DW8) 2002–2007
• Peugeot 206 2.0 HDi (DW10TD) 2004–2005
• Peugeot 307 2.0 HDi (DW10TD) 2001–2005
• Peugeot 406 2.0 HDi (DW10ATED) 2002–2004
• Peugeot Partner 1.9D (DW8) 2002–2010
• Peugeot Partner 2.0 HDi (DW10TD) 2004–2006

Specifications

• Operating Mode: Mechanical
• Water Pump Type: For timing belt drive
• Number of Teeth: 20
• Blades/vanes: 7
• Impeller Material: Metal
• Do not use sealant: Yes (fit with supplied gasket/seal)
• Summary: Timing-belt water pump 1580R with gasket for Citroen/Peugeot DW10 & DW8 engines.

Cross References and OE Numbers

• Citroën: E111006, E111225, E111477, 1201.C4, 16 093 145 80, 16 094 023 80
• Peugeot: E111006, E111225, E111477, 1201.C4, 16 093 145 80, 16 094 023 80
• Fiat: 1609402380, 9569147388
• Lancia: 1609402380, 9569147388
• Suzuki: 17410-67G00, 17410-86CT0
• Toyota: SU001-00204

Nationwide delivery in South Africa. If you are unsure, share your VIN and engine code and we will confirm fitment.
