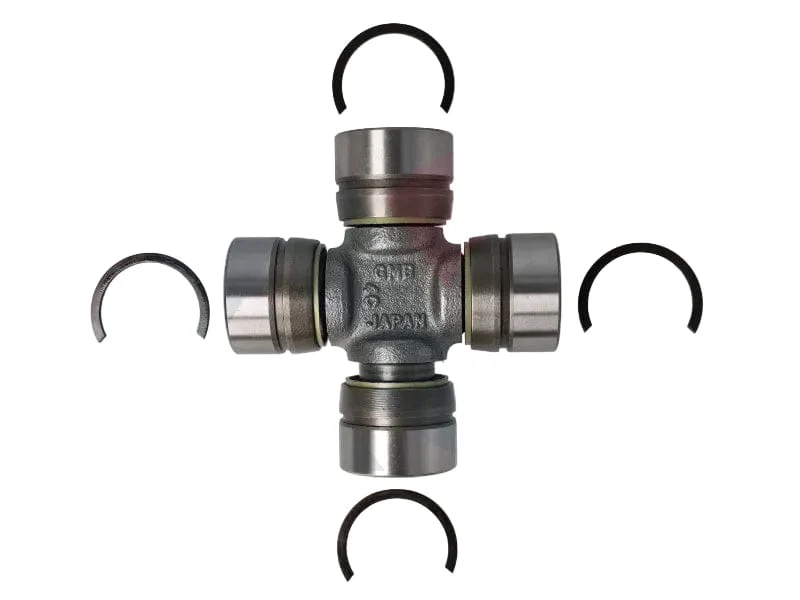

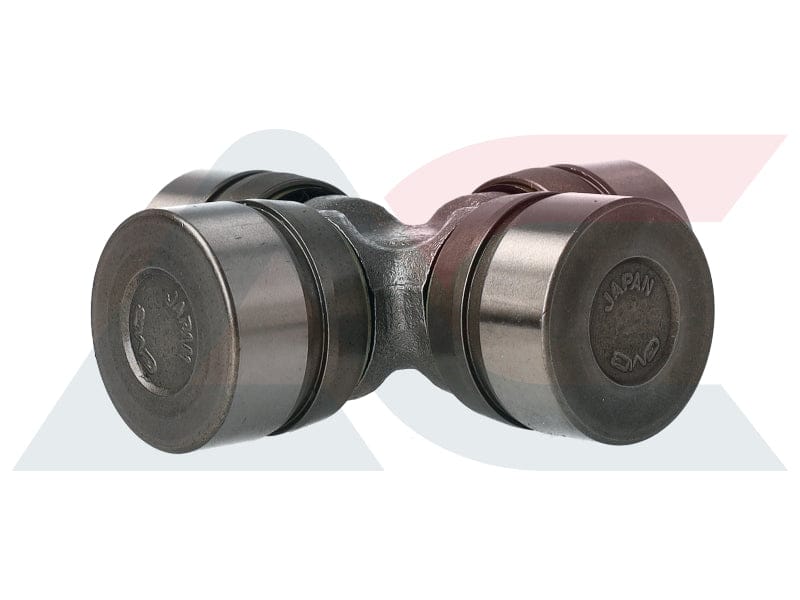

Universal Joint Toyota Avanza 1.3 1.5 29mm GUT-31
Vehicle Compatibility
- Toyota Avanza 1.3 K3-VE 2006-2015
- Toyota Avanza 1.5 3SZ-VE 2006-2015
Fitment note: Confirm by OE reference and supplied dimensions (cup diameter 29mm, F1 47mm, F2 50mm) and stopper specification before dispatch.
Specifications
- Part Type: Universal Joint
- Diameter (Cup / DC): 29mm
- F1 (Between Inner Edges Of Stopper): 47mm
- F2 (Between Outer Edges Of Stopper): 50mm
- Type: B0
- Oiler Location: N
- Stopper: 26.5x1.5 III (Diameter, Thickness, Retaining Ring Type)
- OE References (Toyota): 04371-BZ010, 04371-BZ030
- Part Number: GUT-31
Features
- Universal joint matched to 29mm cup diameter with F1 47mm and F2 50mm specification
- Type B0 design with non-oiler configuration as supplied
- Suitable for Toyota Avanza driveline applications listed when matched by OE reference
Why Buy From Us
- Fitment verification before dispatch
- Nationwide delivery across South Africa
- Correct-match focused sourcing
Installation And Maintenance Tips
- Confirm stopper and retaining ring type before removing the old joint
- Inspect yokes and bearing seats for wear prior to installation
- Ensure retainers seat fully and the joint articulates freely without binding
- Propshaft balancing may be required if vibration existed before replacement
