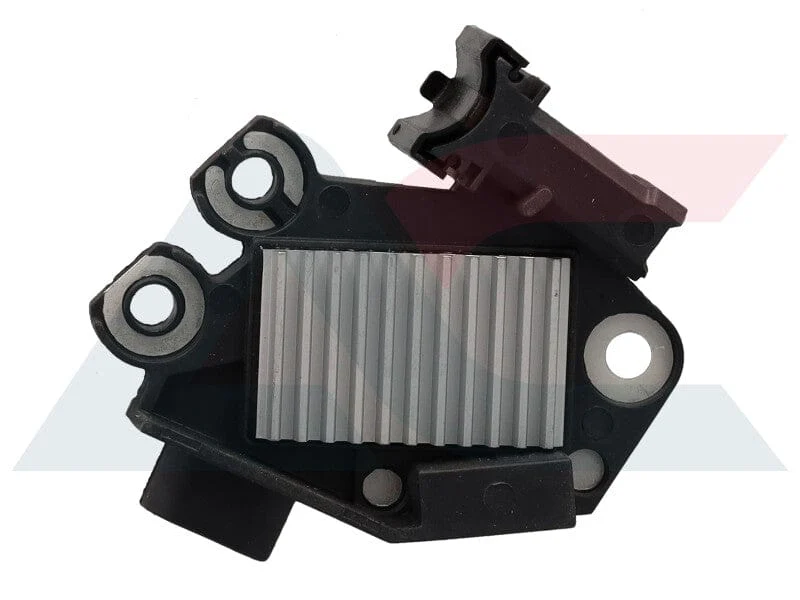

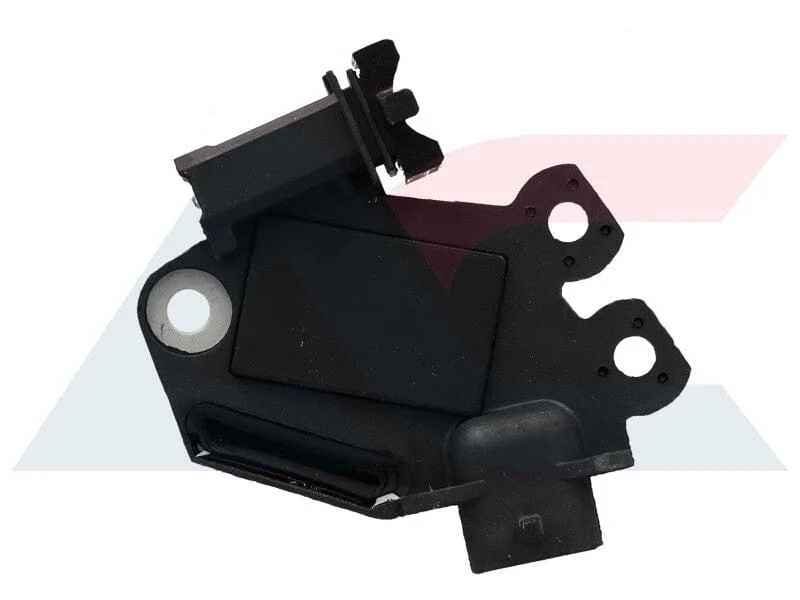

Alternator Voltage Regulator Opel Astra Corsa D Valeo 2 Pin DFM L RC 12V REG0102
Vehicle Compatibility
Alternator voltage regulator for Valeo alternators used on select Opel applications where the original regulator matches a 2 pin DFM L RC connection and IDCPU CPU plug type with the same regulator specification. Listed for Opel Astra and Opel Corsa D applications. Also referenced for Aveo applications where a matching Valeo regulator is fitted. Confirm by alternator brand, regulator plug style and regulator markings before ordering.
Specifications
- Reference: REG0102
- Part Type: Alternator Voltage Regulator
- Alternator Brand: Valeo
- System Voltage: 12V
- Operating Voltage: 14V
- Connector / Pins: 2 Pin (DFM L RC)
- Plug Type: IDCPU CPU
- Specification: 2.5 Sec. LRC
- Lamp Function: Inactive Lamp
- Regulator Specification: RVC
- Short Circuit Protection: Yes
Features
- Regulates alternator field current to maintain stable charging output on compatible Valeo alternators
- 2 pin DFM L RC connector format to match the correct regulator plug and terminal configuration
- IDCPU CPU plug type for the specified alternator regulator interface
- 2.5 sec LRC specification and RVC regulator characteristics for correct charging behaviour where required
- Short circuit protection for improved electrical protection on supported applications
Why Buy From Us
- Local South African stock with nationwide courier delivery
- 12-month warranty subject to correct application and installation
- Fitment support using alternator labels, regulator markings and plug photos
- Trusted by workshops and DIY customers for reliable charging system components
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Disconnect the battery before alternator removal or regulator replacement
- Confirm the alternator is Valeo and the regulator plug matches 2 pin DFM L RC with IDCPU CPU plug type
- Inspect brushes and slip rings while the alternator is open, replacing worn components as needed
- Ensure battery terminals and earth connections are clean and tight to prevent voltage drop and repeat failures
- After installation, verify charging voltage at idle and under load to confirm correct regulation
- If you are unsure about alternator repairs, have the regulator fitted and tested by a qualified auto electrician
