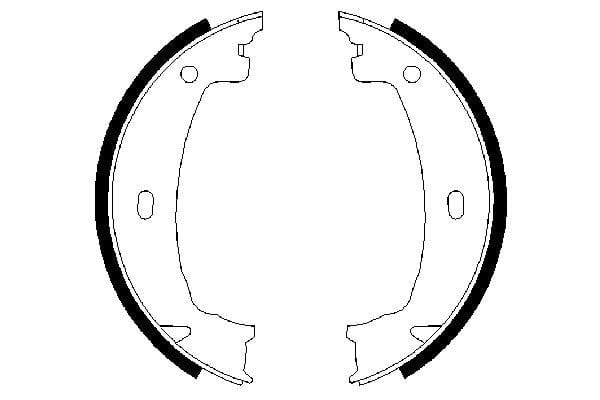

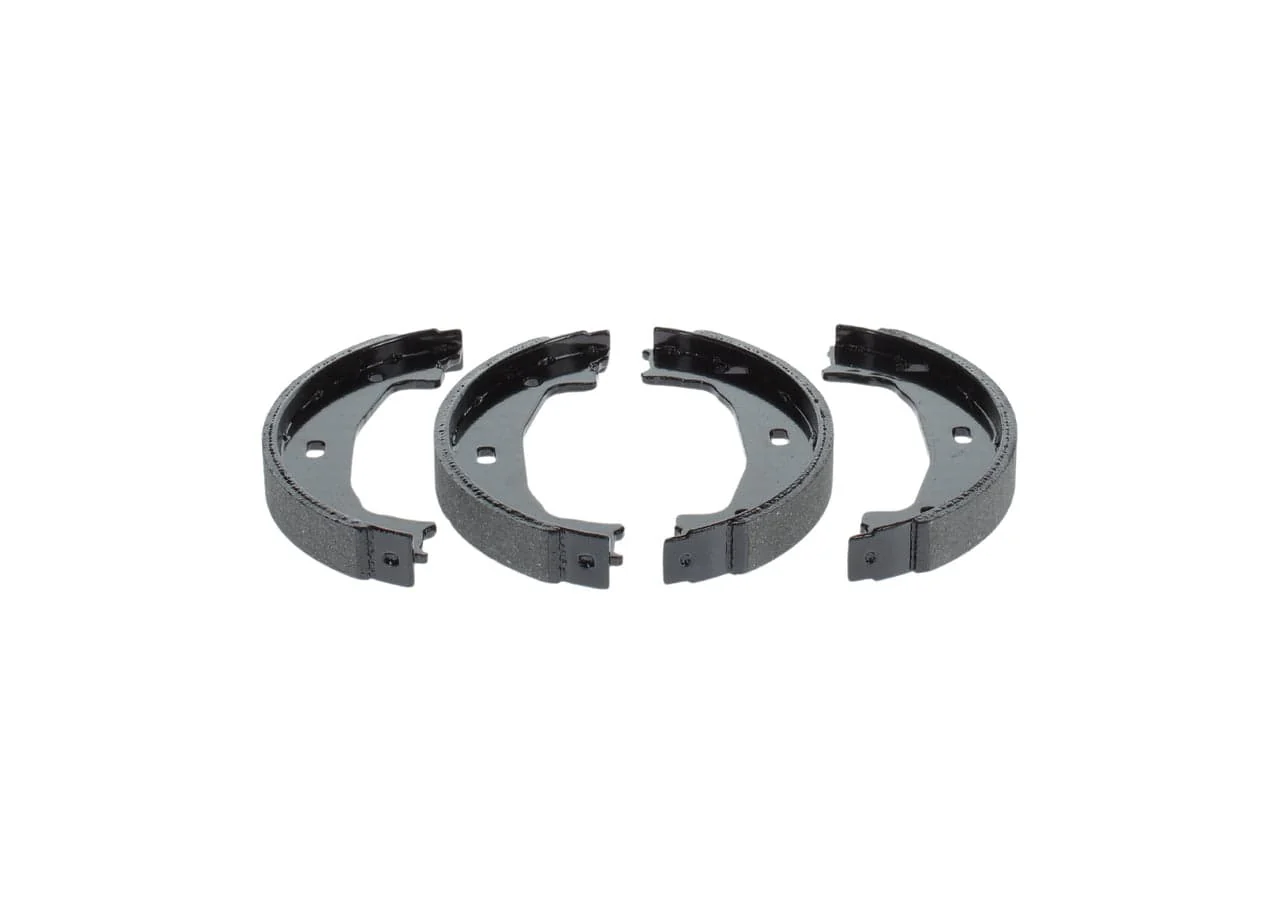

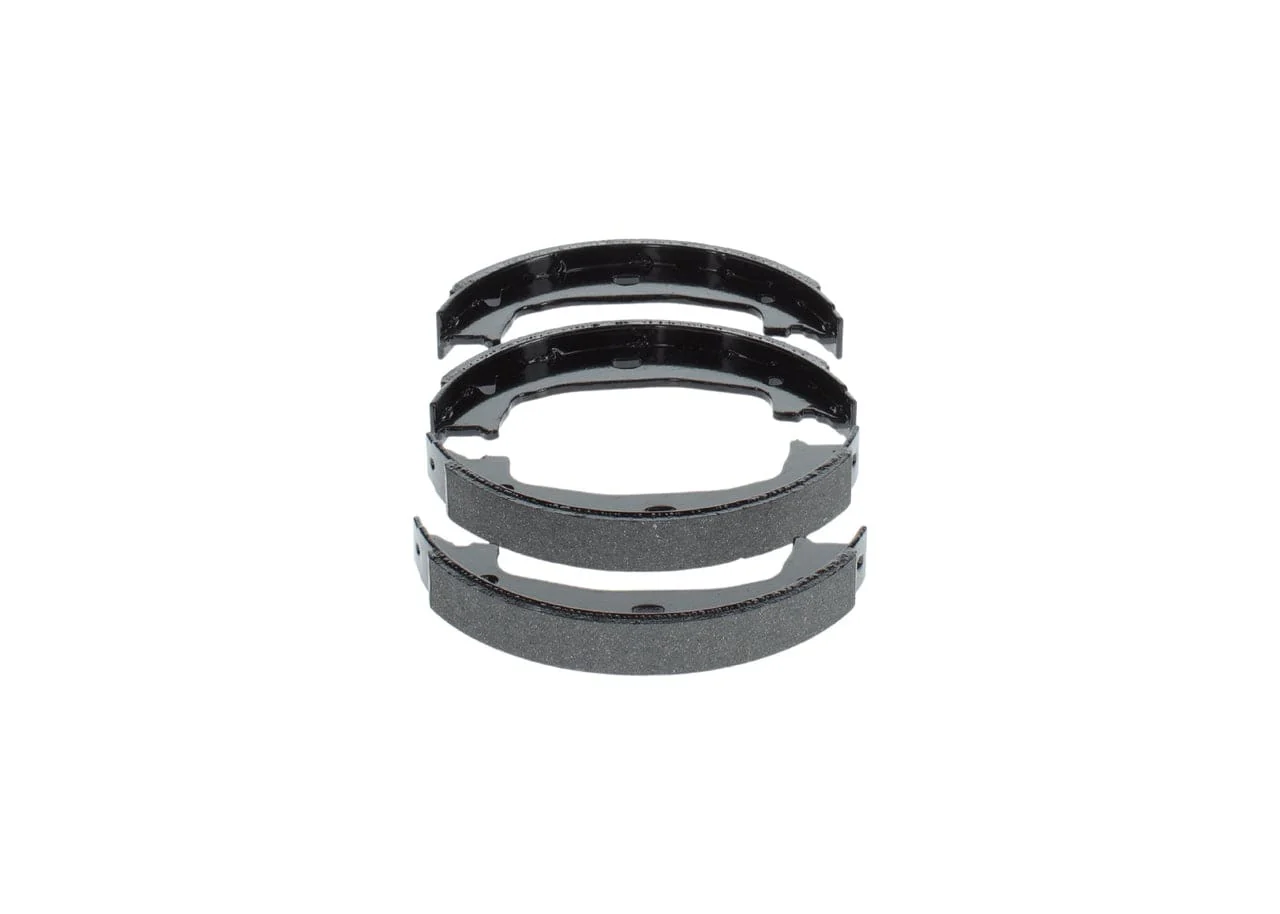

Rear Parking Brake Shoe Set for BMW 1 Series E81, BMW 2 Series & BMW 3 Series - AF828
Vehicle Fitment & Part Details
This rear parking brake shoe set for the BMW 1 Series (E81) carries BMW OE reference 34116761291 and is specified for a 160 mm inner drum diameter. Confirm compatibility by matching the listed fitment details, OEM reference numbers, and VIN/engine/chassis information where variants exist.
Key Details
- SKU
- AF828
- Component
- Rear Parking Brake Shoe Set
- OEM References
-
- BMW: 34116761291
- BMW: 34212213310
- BMW: 34411163244
- BMW: 34411163255
- BMW: 34411165968
- BMW: 34411165986
- BMW: 34416755273
- Primary Fitment
- BMW 1 Series E81 N45 B16 A (09/2007-12/2011)
- Specs
- Ate brake system, 160 mm drum diameter, 20 mm width, 3.3 mm thickness, 0.848 kg
Key Benefits
- Seven BMW OEM reference numbers listed for cross-referencing before ordering.
- Specified for Ate brake system with 160 mm inner drum diameter and 20 mm shoe width.
OEM Reference Numbers
- BMW: 34116761291
- BMW: 34212213310
- BMW: 34411163244
- BMW: 34411163255
- BMW: 34411165968
- BMW: 34411165986
- BMW: 34416755273
Product Specifications
| Specification | Details |
|---|---|
| Brake System | Ate |
| Width | 20 mm |
| Thickness | 3.3 mm |
| Inner Brake Drum Diameter | 160 mm |
| Weight | 0.848 kg |
| Packaging Dimensions | 20.2 × 12.8 × 8.6 cm |
Vehicle Fitment
Includes 289 supplied applications.
View Full Vehicle Fitment (289 applications)
| Application | Engine | Fuel | Power | Years |
|---|---|---|---|---|
| 1 Series 116i (E81) | N45 B16 A | Petrol 1.6 | 85kW/115PS | 09/2007-12/2011 |
| 1 Series 116i (E81) | N43 B16 AA | Petrol 1.6 | 90kW/122PS | 03/2007-12/2011 |
| 1 Series 118i (E81) | N43 B20 A | Petrol 2.0 | 105kW/143PS | 09/2006-12/2011 |
| 1 Series 120i (E81) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 03/2007-09/2012 |
| 1 Series 120i (E81) | N46 B20 B; N46 B20 C | Petrol 2.0 | 115kW/156PS | 03/2007-12/2011 |
| 1 Series 116i (E81) | N43 B20 A | Petrol 2.0 | 90kW/122PS | 11/2008-12/2011 |
| 1 Series 120i (E81) | N43 B20 A | Petrol 2.0 | 120kW/163PS | 03/2007-12/2011 |
| 1 Series 118i (E81) | N46 B20 B | Petrol 2.0 | 100kW/136PS | 09/2006-12/2011 |
| 1 Series 120d (E81) | N47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 03/2007-12/2011 |
| 1 Series 118d (E81) | N47 D20 A; N47 D20 C | Diesel 2.0 | 105kW/143PS | 09/2006-12/2011 |
| 1 Series 120d (E81) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 03/2007-12/2011 |
| 1 Series 116d (E81) | N47 D20 A; N47 D20 C | Diesel 2.0 | 85kW/116PS | 11/2008-12/2011 |
| 1 Series 118d (E81) | N47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 09/2006-12/2011 |
| 1 Series 116d (E81) | N47 D20 A; N47 D20 C | Diesel 2.0 | 66kW/90PS | 01/2011-12/2011 |
| 1 Series 120i Coupe (E82) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 10/2007-10/2013 |
| 1 Series 120i Coupe (E82) | N46 B20 B; N46 B20 E; N46 B20 BD; N46 B20 C | Petrol 2.0 | 115kW/156PS | 09/2009-10/2013 |
| 1 Series 125i Coupe (E82) | N52 B30 BF; N52 B30 A; N52 B30 B | Petrol 3.0 | 160kW/218PS | 03/2008-10/2013 |
| 1 Series 118d Coupe (E82) | N47 D20 C | Diesel 2.0 | 100kW/136PS | 09/2009-10/2013 |
| 1 Series 120d Coupe (E82) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 09/2007-10/2013 |
| 1 Series 120d Coupe (E82) | N47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 09/2007-10/2013 |
| 1 Series 118d Coupe (E82) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 09/2009-10/2013 |
| 1 Series 120i Convertible (E88) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 12/2007-10/2013 |
| 1 Series 118i Convertible (E88) | N43 B20 A | Petrol 2.0 | 105kW/143PS | 03/2008-10/2013 |
| 1 Series 120i Convertible (E88) | N43 B20 A | Petrol 2.0 | 120kW/163PS | 03/2008-12/2013 |
| 1 Series 120i Convertible (E88) | N46 B20 B; N46 B20 E; N46 B20 C | Petrol 2.0 | 115kW/156PS | 03/2008-12/2013 |
| 1 Series 118i Convertible (E88) | N46 B20 B | Petrol 2.0 | 100kW/136PS | 09/2008-12/2013 |
| 1 Series 125i Convertible (E88) | N52 B30 BF; N52 B30 A; N52 B30 B | Petrol 3.0 | 160kW/218PS | 12/2007-10/2013 |
| 1 Series 120d Convertible (E88) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 03/2008-12/2013 |
| 1 Series 118d Convertible (E88) | N47 D20 A; N47 D20 C | Diesel 2.0 | 105kW/143PS | 09/2008-12/2013 |
| 1 Series 120d Convertible (E88) | N47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 03/2008-12/2013 |
| 1 Series 118d Convertible (E88) | N47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 09/2008-12/2013 |
| 1 Series 120d Convertible (E88) | N47 D20 C | Diesel 2.0 | 145kW/197PS | 03/2008-12/2013 |
| 1 Series 116d (F20) | B37 D15 A | Diesel 1.5 | 85kW/116PS | 03/2015-06/2019 |
| 1 Series 114d (F20) | B37 D15 A | Diesel 1.5 | 70kW/95PS | 07/2015-06/2019 |
| 1 Series 116d (F20) | N47 D16 A | Diesel 1.6 | 85kW/116PS | 03/2012-02/2015 |
| 1 Series 114d (F20) | N47 D16 A | Diesel 1.6 | 70kW/95PS | 11/2012-06/2015 |
| 1 Series 125d (F20) | B47 D20 B; N47 D20 D | Diesel 2.0 | 155kW/211PS | 03/2012-06/2019 |
| 1 Series 120d (F20) | B47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 07/2011-06/2019 |
| 1 Series 118d (F20) | B47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 07/2011-06/2019 |
| 1 Series 116d (F20) | N47 D20 C | Diesel 2.0 | 85kW/116PS | 07/2011-02/2015 |
| 1 Series 118d (F20) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 07/2011-02/2015 |
| 1 Series 120d (F20) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 07/2011-02/2015 |
| 1 Series 125d (F20) | N47 D20 D | Diesel 2.0 | 160kW/218PS | 03/2012-02/2015 |
| 1 Series 120d xDrive (F20) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 11/2012-02/2015 |
| 1 Series 118d xDrive (F20) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 07/2013-02/2015 |
| 1 Series 120d xDrive (F20) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 11/2012-02/2015 |
| 1 Series 120d (F20) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 07/2011-02/2015 |
| 1 Series 118d (F20) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 03/2015-06/2019 |
| 1 Series 118d xDrive (F20) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 03/2015-06/2019 |
| 1 Series 120d (F20) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 03/2015-06/2019 |
| 1 Series 120d xDrive (F20) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 03/2015-06/2019 |
| 1 Series 125d (F20) | B47 D20 B | Diesel 2.0 | 165kW/224PS | 03/2015-06/2019 |
| 1 Series 116i (F20) | B38 B15 A | Petrol 1.5 | 80kW/109PS | 03/2015-06/2019 |
| 1 Series 118i (F20) | B38 B15 A | Petrol 1.5 | 100kW/136PS | 07/2015-06/2019 |
| 1 Series 116i (F20) | N13 B16 A | Petrol 1.6 | 100kW/136PS | 07/2011-02/2015 |
| 1 Series 118i (F20) | N13 B16 A | Petrol 1.6 | 125kW/170PS | 07/2011-02/2015 |
| 1 Series 114i (F20) | N13 B16 A | Petrol 1.6 | 75kW/102PS | 07/2012-02/2015 |
| 1 Series 118i (F20) | N13 B16 A | Petrol 1.6 | 100kW/136PS | 03/2015-06/2015 |
| 1 Series 120i (F20) | N13 B16 A | Petrol 1.6 | 130kW/177PS | 03/2015-06/2016 |
| 1 Series 125i (F20) | N20 B20 A | Petrol 2.0 | 160kW/218PS | 03/2012-11/2017 |
| 1 Series 125i (F20) | N20 B20 A | Petrol 2.0 | 175kW/238PS | 03/2012-11/2017 |
| 1 Series M 135i (F20) | N55 B30 A | Petrol 3.0 | 235kW/320PS | 07/2012-02/2015 |
| 1 Series M 135i xDrive (F20) | N55 B30 A | Petrol 3.0 | 235kW/320PS | 11/2012-02/2015 |
| 1 Series M 135i (F20) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 03/2015-06/2016 |
| 1 Series M 135i xDrive (F20) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 03/2015-06/2016 |
| 1 Series 116i (E87) | N45 B16 A | Petrol 1.6 | 85kW/115PS | 06/2004-06/2011 |
| 1 Series 116i (E87) | N43 B16 AA | Petrol 1.6 | 90kW/122PS | 09/2007-06/2011 |
| 1 Series 116i (E87) | N43 B20 A | Petrol 2.0 | 90kW/122PS | 01/2009-06/2011 |
| 1 Series 118i (E87) | N46 B20 B | Petrol 2.0 | 95kW/129PS | 07/2004-02/2007 |
| 1 Series 118i (E87) | N46 B20 B | Petrol 2.0 | 100kW/136PS | 10/2006-06/2011 |
| 1 Series 118i (E87) | N43 B20 A | Petrol 2.0 | 105kW/143PS | 09/2006-06/2011 |
| 1 Series 120i (E87) | N46 B20 B; N46 B20 CC; N46 B20 BD; N46 B20 C | Petrol 2.0 | 110kW/150PS | 06/2004-02/2007 |
| 1 Series 120i (E87) | N46 B20 B; N46 B20 CC; N46 B20 E; N46 B20 A; N46 B20 BD; N46 B20 C | Petrol 2.0 | 115kW/156PS | 03/2007-06/2011 |
| 1 Series 120i (E87) | N43 B20 A | Petrol 2.0 | 120kW/163PS | 03/2007-06/2011 |
| 1 Series 120i (E87) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 03/2007-06/2011 |
| 1 Series 116d (E87) | N47 D20 A; N47 D20 C | Diesel 2.0 | 85kW/116PS | 03/2009-06/2011 |
| 1 Series 118d (E87) | M47 D20 (204D4) | Diesel 2.0 | 90kW/122PS | 06/2004-02/2007 |
| 1 Series 118d (E87) | N47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 03/2007-06/2011 |
| 1 Series 118d (E87) | N47 D20 A; N47 D20 C | Diesel 2.0 | 105kW/143PS | 03/2007-06/2011 |
| 1 Series 120d (E87) | M47 D20 (204D4); N47 D20 A | Diesel 2.0 | 120kW/163PS | 06/2004-06/2011 |
| 1 Series 120d (E87) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 03/2007-06/2011 |
| 1 Series 116d (E87) | N47 D20 C | Diesel 2.0 | 66kW/90PS | 01/2011-12/2011 |
| 1 Series 116 d (F21) | B37 D15 A | Diesel 1.5 | 85kW/116PS | 03/2015-05/2019 |
| 1 Series 114 d (F21) | B37 D15 A | Diesel 1.5 | 70kW/95PS | 06/2015-05/2019 |
| 1 Series 114 d (F21) | N47 D16 A | Diesel 1.6 | 70kW/95PS | 07/2012-05/2019 |
| 1 Series 116 d (F21) | N47 D16 A | Diesel 1.6 | 85kW/116PS | 12/2011-02/2015 |
| 1 Series 118 d xDrive (F21) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 05/2013-02/2015 |
| 1 Series 116 d (F21) | N47 D20 C | Diesel 2.0 | 85kW/116PS | 07/2012-02/2015 |
| 1 Series 118 d (F21) | N47 D20 C | Diesel 2.0 | 100kW/136PS | 12/2011-06/2019 |
| 1 Series 118 d (F21) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 12/2011-02/2015 |
| 1 Series 120 d (F21) | N47 D20 C | Diesel 2.0 | 120kW/163PS | 07/2012-06/2019 |
| 1 Series 120 d (F21) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 07/2012-02/2015 |
| 1 Series 120 d xDrive (F21) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 02/2012-02/2015 |
| 1 Series 125 d (F21) | N47 D20 D | Diesel 2.0 | 155kW/211PS | 12/2011-05/2019 |
| 1 Series 125 d (F21) | N47 D20 D | Diesel 2.0 | 160kW/218PS | 12/2011-02/2015 |
| 1 Series 120 d xDrive (F21) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 01/2012-02/2015 |
| 1 Series 120 d (F21) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 01/2012-02/2015 |
| 1 Series 118 d (F21) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 03/2015-06/2019 |
| 1 Series 118 d xDrive (F21) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 03/2015-05/2019 |
| 1 Series 120 d (F21) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 03/2015-06/2019 |
| 1 Series 120 d xDrive (F21) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 03/2015-06/2019 |
| 1 Series 125 d (F21) | B47 D20 B | Diesel 2.0 | 165kW/224PS | 03/2015-05/2019 |
| 1 Series 116 i (F21) | B38 B15 A | Petrol 1.5 | 80kW/109PS | 03/2015-06/2019 |
| 1 Series 118 i (F21) | B38 B15 A | Petrol 1.5 | 100kW/136PS | 03/2015-06/2019 |
| 1 Series 114 i (F21) | N13 B16 A | Petrol 1.6 | 75kW/102PS | 07/2012-01/2015 |
| 1 Series 116 i (F21) | N13 B16 A | Petrol 1.6 | 100kW/136PS | 12/2011-02/2015 |
| 1 Series 118 i (F21) | N13 B16 A | Petrol 1.6 | 125kW/170PS | 07/2012-06/2019 |
| 1 Series 118 i (F21) | N13 B16 A | Petrol 1.6 | 100kW/136PS | 03/2015-06/2019 |
| 1 Series 120 i (F21) | N13 B16 A | Petrol 1.6 | 130kW/177PS | 03/2015-06/2019 |
| 1 Series 125 i (F21) | N20 B20 A | Petrol 2.0 | 160kW/218PS | 12/2011-12/2019 |
| 1 Series 125 i (F21) | N20 B20 A | Petrol 2.0 | 175kW/238PS | 03/2013-06/2019 |
| 1 Series M 135 i (F21) | N55 B30 A | Petrol 3.0 | 235kW/320PS | 12/2011-06/2016 |
| 1 Series M 135 i xDrive (F21) | N55 B30 A | Petrol 3.0 | 235kW/320PS | 02/2012-06/2016 |
| 1 Series M 135 i (F21) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 03/2015-06/2016 |
| 1 Series M 135 i xDrive (F21) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 03/2015-06/2016 |
| 1 Series 120 i (F21) | B48 B20 A | Petrol 2.0 | 135kW/184PS | 07/2016-06/2019 |
| 1 Series 125 i (F21) | B48 B20 B | Petrol 2.0 | 165kW/224PS | 10/2015-06/2019 |
| 1 Series M 140 i (F21) | B58 B30 A | Petrol 3.0 | 250kW/340PS | 10/2015-06/2019 |
| 1 Series M 140 i xDrive (F21) | B58 B30 A | Petrol 3.0 | 250kW/340PS | 09/2015-06/2019 |
| 1 Series 220 d (F21) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 10/2013-06/2017 |
| 1 Series 218 d (F21) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 03/2014-06/2015 |
| 1 Series 225 d (F21) | N47 D20 D | Diesel 2.0 | 160kW/218PS | 01/2014-06/2017 |
| 1 Series 220 d (F21) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 10/2012-11/2014 |
| 1 Series 220 d (F21) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 03/2014-09/2020 |
| 1 Series 220 d xDrive (F21) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 06/2014-09/2020 |
| 1 Series 218 d (F21) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 07/2015-09/2020 |
| 1 Series 225 d (F21) | B47 D20 B | Diesel 2.0 | 165kW/224PS | 07/2015-05/2019 |
| 1 Series 218 d (F21) | B47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 03/2014-09/2020 |
| 1 Series 220 d (F21) | B47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 11/2014-09/2020 |
| 1 Series 220 d xDrive (F21) | B47 D20 A | Diesel 2.0 | 120kW/163PS | 03/2015-09/2020 |
| 1 Series 218 i (F21) | B38 B15 A | Petrol 1.5 | 100kW/136PS | 03/2015-06/2021 |
| 1 Series 220 i (F21) | N20 B20 B; N20 B20 A | Petrol 2.0 | 135kW/184PS | 10/2013-06/2021 |
| 1 Series 228 i (F21) | N26 B20 A; N20 B20 A | Petrol 2.0 | 180kW/245PS | 07/2014-06/2016 |
| 1 Series M 235 i (F21) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 10/2013-06/2016 |
| 1 Series M 235 i xDrive (F21) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 07/2014-06/2016 |
| 1 Series 220 i (F21) | B48 B20 A | Petrol 2.0 | 135kW/184PS | 09/2015-06/2021 |
| 1 Series 230 i (F21) | B46 B20 B; B48 B20 B | Petrol 2.0 | 185kW/252PS | 07/2016-06/2021 |
| 1 Series M 240 i (F21) | B58 B30 A | Petrol 3.0 | 250kW/340PS | 09/2015-06/2021 |
| 1 Series M 240 i xDrive (F21) | B58 B30 A | Petrol 3.0 | 250kW/340PS | 09/2015-06/2021 |
| 2 Series 218 i Convertible (F23) | B38 B15 A | Petrol 1.5 | 100kW/136PS | 03/2015-06/2021 |
| 2 Series 220 i Convertible (F23) | N20 B20 B; N20 B20 A | Petrol 2.0 | 135kW/184PS | 04/2014-06/2021 |
| 2 Series 228 i Convertible (F23) | N20 B20 A | Petrol 2.0 | 180kW/245PS | 11/2014-06/2016 |
| 2 Series M 235 i Convertible (F23) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 11/2014-06/2016 |
| 2 Series M 235 i xDrive Convertible (F23) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 07/2015-06/2016 |
| 2 Series 220 d Convertible (F23) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 03/2014-09/2020 |
| 2 Series 218 d Convertible (F23) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 07/2015-09/2020 |
| 2 Series 225 d Convertible (F23) | B47 D20 B | Diesel 2.0 | 165kW/224PS | 07/2015-05/2019 |
| 2 Series 220 d Convertible (F23) | B47 D20 A | Diesel 2.0 | 120kW/163PS | 03/2014-09/2020 |
| 2 Series 218 d Convertible (F23) | B47 D20 A | Diesel 2.0 | 100kW/136PS | 07/2015-09/2020 |
| 2 Series 220 i Convertible (F23) | B48 B20 A | Petrol 2.0 | 135kW/184PS | 09/2015-06/2021 |
| 2 Series 230 i Convertible (F23) | B46 B20 B; B48 B20 B | Petrol 2.0 | 185kW/252PS | 07/2016-06/2021 |
| 2 Series M 240 i Convertible (F23) | B58 B30 A | Petrol 3.0 | 250kW/340PS | 09/2015-06/2021 |
| 2 Series M 240 i xDrive Convertible (F23) | B58 B30 A | Petrol 3.0 | 250kW/340PS | 09/2015-06/2021 |
| 3 Series 316 ti Compact (E46) | N40 B16 A | Petrol 1.6 | 77kW/105PS | 06/2002-02/2005 |
| 3 Series 316 ti Compact (E46) | N40 B16 A; N45 B16 A | Petrol 1.6 | 85kW/115PS | 06/2002-02/2005 |
| 3 Series 316 ti Compact (E46) | N46 B18 A; N42 B18 A | Petrol 1.8 | 85kW/115PS | 06/2001-02/2005 |
| 3 Series 318 ti Compact (E46) | N42 B20 A; N46 B20 A | Petrol 2.0 | 105kW/143PS | 03/2001-12/2004 |
| 3 Series 325 ti Compact (E46) | M54 B25 (256S5) | Petrol 2.5 | 141kW/192PS | 04/2001-12/2004 |
| 3 Series 320 td Compact (E46) | M47 D20 (204D4) | Diesel 2.0 | 110kW/150PS | 09/2001-02/2005 |
| 3 Series 318 td Compact (E46) | M47 D20 (204D4) | Diesel 2.0 | 85kW/115PS | 03/2003-02/2005 |
| 3 Series 320 td Compact (E46) | M47 D20 (204D4) | Diesel 2.0 | 100kW/136PS | 10/2001-12/2002 |
| 3 Series 316 i (E46) | M43 B16 (164E3) | Petrol 1.6 | 77kW/105PS | 04/2000-02/2005 |
| 3 Series 316 i (E46) | N40 B16 A; N45 B16 A | Petrol 1.6 | 85kW/115PS | 06/2002-02/2005 |
| 3 Series 316 i (E46) | N46 B18 A; N42 B18 A | Petrol 1.8 | 85kW/115PS | 02/2002-02/2005 |
| 3 Series 318 i (E46) | M43 B19 (194E1) | Petrol 1.9 | 87kW/118PS | 12/1997-09/2001 |
| 3 Series 316 i (E46) | M43 B19 (194E1) | Petrol 1.9 | 77kW/105PS | 12/1998-02/2002 |
| 3 Series 320 i (E46) | M52 B20 (206S4) | Petrol 2.0 | 110kW/150PS | 03/1998-09/2000 |
| 3 Series 318 i (E46) | N42 B20 A; N46 B20 A; N46 B20 C | Petrol 2.0 | 105kW/143PS | 09/2001-02/2005 |
| 3 Series 320 i (E46) | M54 B22 (226S1) | Petrol 2.2 | 125kW/170PS | 09/2000-02/2005 |
| 3 Series 323 i (E46) | M52 B25 (256S4) | Petrol 2.5 | 125kW/170PS | 03/1998-09/2000 |
| 3 Series 325 i (E46) | M54 B25 (256S5) | Petrol 2.5 | 141kW/192PS | 09/2000-02/2005 |
| 3 Series 328 i (E46) | M52 B28 (286S2) | Petrol 2.8 | 142kW/193PS | 02/1998-06/2000 |
| 3 Series 320 d (E46) | M47 D20 (204D1) | Diesel 2.0 | 100kW/136PS | 04/1998-09/2001 |
| 3 Series 320 d (E46) | M47 D20 (204D4) | Diesel 2.0 | 110kW/150PS | 09/2001-05/2005 |
| 3 Series 318 d (E46) | M47 D20 (204D1) | Diesel 2.0 | 85kW/116PS | 09/2001-03/2003 |
| 3 Series 318 d (E46) | M47 D20 (204D4) | Diesel 2.0 | 85kW/116PS | 03/2003-02/2005 |
| 3 Series 320 d (E46) | M47 D20 (204D1) | Diesel 2.0 | 95kW/129PS | 02/1998-08/2001 |
| 3 Series 316 i Touring (E46) | N46 B18 A; N42 B18 A | Petrol 1.8 | 85kW/115PS | 03/2002-02/2005 |
| 3 Series 318 i Touring (E46) | M43 B19 (194E1) | Petrol 1.9 | 87kW/118PS | 10/1999-09/2001 |
| 3 Series 318 i Touring (E46) | M43 B19 (194E1) | Petrol 1.9 | 85kW/116PS | 10/1999-09/2001 |
| 3 Series 320 i Touring (E46) | M52 B20 (206S4) | Petrol 2.0 | 110kW/150PS | 10/1999-09/2000 |
| 3 Series 318 i Touring (E46) | N42 B20 A; N46 B20 A; N46 B20 C | Petrol 2.0 | 105kW/143PS | 09/2001-07/2005 |
| 3 Series 320 i Touring (E46) | M54 B22 (226S1) | Petrol 2.2 | 125kW/170PS | 09/2000-02/2005 |
| 3 Series 325 i Touring (E46) | M54 B25 (256S5) | Petrol 2.5 | 141kW/192PS | 09/2000-02/2005 |
| 3 Series 328 i Touring (E46) | M52 B28 (286S2) | Petrol 2.8 | 142kW/193PS | 06/1999-05/2000 |
| 3 Series 320 d Touring (E46) | M47 D20 (204D1) | Diesel 2.0 | 100kW/136PS | 03/2000-09/2001 |
| 3 Series 320 d Touring (E46) | M47 D20 (204D4) | Diesel 2.0 | 110kW/150PS | 09/2001-02/2005 |
| 3 Series 318 d Touring (E46) | M47 D20 (204D1) | Diesel 2.0 | 85kW/115PS | 10/2002-03/2003 |
| 3 Series 318 d Touring (E46) | M47 D20 (204D4) | Diesel 2.0 | 85kW/116PS | 03/2003-02/2005 |
| 3 Series 318 Ci Convertible (E46) | N42 B20 A; N46 B20 A | Petrol 2.0 | 105kW/143PS | 09/2001-12/2007 |
| 3 Series 318 Ci Convertible (E46) | N46 B20 A; N46 B20 C | Petrol 2.0 | 110kW/150PS | 03/2004-08/2006 |
| 3 Series 320 Ci Convertible (E46) | M54 B22 (226S1) | Petrol 2.2 | 125kW/170PS | 09/2000-12/2007 |
| 3 Series 320 Ci Convertible (E46) | M54 B22 (226S1) | Petrol 2.2 | 120kW/163PS | 01/2006-12/2007 |
| 3 Series 323 Ci Convertible (E46) | M52 B25 (256S4) | Petrol 2.5 | 125kW/170PS | 04/2000-09/2000 |
| 3 Series 325 Ci Convertible (E46) | M54 B25 (256S5) | Petrol 2.5 | 141kW/192PS | 09/2000-08/2006 |
| 3 Series 320 Cd Convertible (E46) | M47 D20 (204D4) | Diesel 2.0 | 110kW/150PS | 02/2005-12/2007 |
| 3 Series 318 d (E90) | N47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 09/2007-10/2011 |
| 3 Series 320 d (E90) | M47 D20 (204D4); N47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 12/2004-10/2011 |
| 3 Series 318 d (E90) | M47 D20 (204D4) | Diesel 2.0 | 90kW/122PS | 03/2005-08/2007 |
| 3 Series 320 d (E90) | M47 D20 (204D4) | Diesel 2.0 | 110kW/150PS | 12/2004-09/2007 |
| 3 Series 318 d (E90) | N47 D20 A; N47 D20 C | Diesel 2.0 | 105kW/143PS | 02/2007-10/2011 |
| 3 Series 320 d (E90) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 09/2007-02/2010 |
| 3 Series 316 d (E90) | N47 D20 C | Diesel 2.0 | 85kW/116PS | 07/2009-12/2011 |
| 3 Series 320 d (E90) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 03/2010-10/2011 |
| 3 Series 325 d (E90) | M57 D30 (306D3) | Diesel 3.0 | 145kW/197PS | 09/2006-02/2010 |
| 3 Series 316 i (E90) | N45 B16 A; N45 B16 AC | Petrol 1.6 | 85kW/115PS | 09/2005-10/2011 |
| 3 Series 316 i (E90) | N43 B16 AA; N43 B16 A | Petrol 1.6 | 90kW/122PS | 09/2007-10/2011 |
| 3 Series 320 i (E90) | N46 B20 B; N46 B20 CB; N46 B20 BD; N46 B20 C | Petrol 2.0 | 110kW/150PS | 12/2004-08/2007 |
| 3 Series 318 i (E90) | N46 B20 B | Petrol 2.0 | 95kW/129PS | 09/2005-08/2007 |
| 3 Series 318 i (E90) | N43 B20 A | Petrol 2.0 | 105kW/143PS | 09/2007-10/2011 |
| 3 Series 320 i (E90) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 09/2007-10/2011 |
| 3 Series 320 i (E90) | N46 B20 B; N46 B20 CC; N46 B20 CD; N46 B20 E; N46 B20 C | Petrol 2.0 | 115kW/156PS | 02/2007-12/2011 |
| 3 Series 318 i (E90) | N46 B20 B; N46 B20 CC; N46 B20 CD; N46 B20 E; N46 B20 C | Petrol 2.0 | 100kW/136PS | 09/2007-10/2011 |
| 3 Series 325 i (E90) | N52 B25 A; N52 B25 B; N52 B25 BF | Petrol 2.5 | 160kW/218PS | 12/2004-12/2011 |
| 3 Series 323 i (E90) | N52 B25 A; N52 B25 B; N52 B25 BF; N52 B25 BE | Petrol 2.5 | 130kW/177PS | 09/2005-02/2007 |
| 3 Series 325 i (E90) | N52 B25 A | Petrol 2.5 | 155kW/211PS | 01/2006-12/2011 |
| 3 Series 323 i (E90) | N52 B25 A; N52 B25 BF | Petrol 2.5 | 140kW/190PS | 03/2007-12/2011 |
| 3 Series 325 i (E90) | N53 B30 A | Petrol 3.0 | 160kW/218PS | 03/2007-12/2011 |
| 3 Series 320 i (E90) | N43 B20 A | Petrol 2.0 | 120kW/163PS | 03/2007-12/2011 |
| 3 Series 328 i (E90) | N52 B30 A; N51 B30 A | Petrol 3.0 | 172kW/234PS | 09/2006-12/2011 |
| 3 Series 316 i Touring (E91) | N43 B16 AA | Petrol 1.6 | 90kW/122PS | 09/2008-06/2012 |
| 3 Series 318 i Touring (E91) | N46 B20 B | Petrol 2.0 | 100kW/136PS | 09/2007-03/2012 |
| 3 Series 320 i Touring (E91) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 02/2007-12/2012 |
| 3 Series 316 d Touring (E91) | N47 D20 C | Diesel 2.0 | 85kW/116PS | 09/2009-06/2012 |
| 3 Series 318 d Touring (E91) | N47 D20 A; N47 D20 C | Diesel 2.0 | 105kW/143PS | 09/2007-06/2012 |
| 3 Series 320 d Touring (E91) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 02/2007-12/2010 |
| 3 Series 320 d Touring (E91) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 03/2010-05/2012 |
| 3 Series 320 d xDrive Touring (E91) | N47 D20 C | Diesel 2.0 | 145kW/197PS | 02/2008-02/2010 |
| 3 Series 316 i Coupe (E92) | N43 B16 AA | Petrol 1.6 | 90kW/122PS | 09/2007-06/2013 |
| 3 Series 318 i Coupe (E92) | N43 B20 A | Petrol 2.0 | 105kW/143PS | 03/2010-12/2013 |
| 3 Series 320 i Coupe (E92) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 03/2007-06/2013 |
| 3 Series 320 i Coupe (E92) | N43 B20 A | Petrol 2.0 | 120kW/163PS | 01/2007-06/2013 |
| 3 Series 320 i Coupe (E92) | N46 B20 B | Petrol 2.0 | 115kW/156PS | 06/2007-12/2013 |
| 3 Series 325 i Coupe (E92) | N52 B25 A; N52 B25 AF; N52 B25 BF | Petrol 2.5 | 160kW/218PS | 06/2006-02/2010 |
| 3 Series 325 i Coupe (E92) | N53 B30 A | Petrol 3.0 | 160kW/218PS | 09/2007-06/2013 |
| 3 Series 325 i Coupe (E92) | N53 B30 A | Petrol 3.0 | 155kW/211PS | 03/2010-06/2013 |
| 3 Series 320 d Coupe (E92) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 09/2006-02/2010 |
| 3 Series 320 d Coupe (E92) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 03/2010-06/2013 |
| 3 Series 320 d Coupe (E92) | N47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 03/2007-06/2013 |
| 3 Series 328 i Coupe (E92) | N52 B30 A; N51 B30 A | Petrol 3.0 | 172kW/234PS | 06/2006-06/2013 |
| 3 Series 318 i Convertible (E93) | N43 B20 A | Petrol 2.0 | 105kW/143PS | 03/2010-12/2013 |
| 3 Series 320 i Convertible (E93) | N46 B20 B; N46 B20 E | Petrol 2.0 | 115kW/156PS | 01/2007-08/2013 |
| 3 Series 318 i Convertible (E93) | B38 B15 A | Petrol 1.5 | 100kW/136PS | 07/2015-10/2018 |
| 3 Series 316 i Convertible (E93) | N13 B16 A | Petrol 1.6 | 100kW/136PS | 07/2012-08/2016 |
| 3 Series 320 i Convertible (E93) | N13 B16 A | Petrol 1.6 | 125kW/170PS | 11/2012-06/2016 |
| 3 Series 328 i Convertible (E93) | N26 B20 A; N20 B20 C; N20 B20 A | Petrol 2.0 | 180kW/245PS | 11/2011-10/2018 |
| 3 Series 320 i Convertible (E93) | N20 B20 D; N20 B20 B; N20 B20 A | Petrol 2.0 | 135kW/184PS | 03/2012-10/2018 |
| 3 Series 320 i Convertible (E93) | B48 B20 A | Petrol 2.0 | 135kW/184PS | 07/2015-10/2018 |
| 3 Series 320 d Convertible (E93) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 11/2011-03/2016 |
| 3 Series 320 d Convertible (E93) | B47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 11/2011-10/2018 |
| 3 Series 316 d Convertible (E93) | B47 D20 A; N47 D20 C | Diesel 2.0 | 85kW/116PS | 03/2012-10/2018 |
| 3 Series 318 d Convertible (E93) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 03/2012-06/2015 |
| 3 Series 318 d Convertible (E93) | B47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 03/2012-10/2018 |
| 3 Series 325 d Convertible (E93) | N47 D20 D | Diesel 2.0 | 160kW/218PS | 03/2013-02/2016 |
| 3 Series 320 d Convertible (E93) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 11/2011-03/2016 |
| 3 Series 318 d Convertible (E93) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 07/2015-10/2018 |
| 3 Series 320 d Convertible (E93) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 07/2015-10/2018 |
| 3 Series 325 d Convertible (E93) | N47 D20 D | Diesel 2.0 | 155kW/211PS | 03/2013-02/2016 |
| 3 Series 316 i Touring (F31) | N13 B16 A | Petrol 1.6 | 100kW/136PS | 03/2013-06/2015 |
| 3 Series 320 i Touring (F31) | N20 B20 B | Petrol 2.0 | 135kW/184PS | 11/2012-06/2015 |
| 3 Series 316 d Touring (F31) | B47 D20 A; N47 D20 C | Diesel 2.0 | 85kW/116PS | 11/2012-06/2019 |
| 3 Series 318 d Touring (F31) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 11/2012-06/2015 |
| 3 Series 320 d Touring (F31) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 07/2012-02/2016 |
| 3 Series 320 d Touring (F31) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 07/2012-02/2016 |
| 3 Series 318 d Touring (F31) | B47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 11/2012-06/2019 |
| 3 Series 420 i Touring (F31) | N20 B20 B; N20 B20 A | Petrol 2.0 | 135kW/184PS | 11/2013-02/2017 |
| 3 Series 420 i Touring (F31) | N20 B20 B; N20 B20 A | Petrol 2.0 | 120kW/163PS | 11/2013-02/2017 |
| 3 Series 420 d Touring (F31) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 07/2013-02/2015 |
| 3 Series 425 d Touring (F31) | N47 D20 D | Diesel 2.0 | 160kW/218PS | 03/2014-02/2016 |
| 3 Series 420 d Touring (F31) | B47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 07/2013-06/2020 |
| 3 Series 425 d Touring (F31) | N47 D20 D | Diesel 2.0 | 155kW/211PS | 03/2014-02/2016 |
| 3 Series 420 d Touring (F31) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 07/2013-03/2015 |
| 3 Series 420 d Touring (F31) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 10/2013-06/2015 |
| 4 Series 418 d Gran Coupe (F36) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 03/2014-06/2015 |
| 4 Series 420 d Gran Coupe (F36) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 03/2014-02/2015 |
| 4 Series 420 d Gran Coupe (F36) | B47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 03/2014-12/2020 |
| 4 Series 418 d Gran Coupe (F36) | B47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 03/2014-12/2020 |
| 4 Series 420 d Gran Coupe (F36) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 03/2014-02/2015 |
| 4 Series 420 i Gran Coupe (F36) | N20 B20 B | Petrol 2.0 | 135kW/184PS | 03/2014-02/2017 |
| 4 Series 420 i Gran Coupe (F36) | N20 B20 B | Petrol 2.0 | 120kW/163PS | 03/2014-02/2017 |
| Z4 2.0 i Roadster (E85) | N46 B20 B | Petrol 2.0 | 110kW/150PS | 03/2005-02/2009 |
| Z4 2.2 i Roadster (E85) | M54 B22 (226S1) | Petrol 2.2 | 125kW/170PS | 10/2003-10/2005 |
| Z4 2.5 i Roadster (E85) | M54 B25 (256S5) | Petrol 2.5 | 141kW/192PS | 12/2002-12/2005 |
| Z4 2.5 i Roadster (E85) | N52 B25 A | Petrol 2.5 | 130kW/177PS | 09/2005-02/2009 |
| Z4 2.5 si Roadster (E85) | N52 B25 A | Petrol 2.5 | 160kW/218PS | 01/2006-08/2008 |
| Z4 3.0 i Roadster (E85) | M54 B30 (306S3) | Petrol 3.0 | 170kW/231PS | 12/2002-12/2005 |
| Z4 3.0 si Roadster (E85) | N52 B30 BF; N52 B30 A | Petrol 3.0 | 195kW/265PS | 01/2006-08/2008 |
| Z4 3.0 si Coupe (E86) | N52 B30 BF; N52 B30 A | Petrol 3.0 | 195kW/265PS | 04/2006-08/2008 |
Fitment Notes
- Always match OEM reference number(s) and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.
- This part covers multiple BMW model ranges, body styles, and engine variants from 1997 to 2021. Verify the correct application using the fitment table above.
Installation & Maintenance Tips
- Compare the new brake shoes to the removed set before installation to confirm the shoe width, thickness, and drum diameter match.
- Clean the drum inner surface, backing plate, and all mounting hardware before fitting the new brake shoes.
- Replace related wear hardware such as springs, clips, and retainers where applicable during installation.
- Adjust the parking brake mechanism according to the vehicle manufacturer's workshop procedure after fitting.
- After installation, verify correct parking brake operation and confirm there are no abnormal noises.
Common Questions
Does this rear parking brake shoe set fit my BMW 1 Series?
This part (AF828) is listed for the fitments shown on this page. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.
What OEM part numbers does this cross-reference?
Listed cross-references: 34116761291, 34212213310, 34411163244, 34411163255, 34411165968, 34411165986, 34416755273. Match at least one OEM reference to your original part before ordering.
How do I confirm fitment if there are multiple variants?
Use VIN, engine code, and chassis/platform details and compare them to the fitment section above. If unsure, request fitment assistance before ordering.
$7.72
Original: $25.73
-70%Rear Parking Brake Shoe Set for BMW 1 Series E81, BMW 2 Series & BMW 3 Series - AF828—
$25.73
$7.72Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Vehicle Fitment & Part Details
This rear parking brake shoe set for the BMW 1 Series (E81) carries BMW OE reference 34116761291 and is specified for a 160 mm inner drum diameter. Confirm compatibility by matching the listed fitment details, OEM reference numbers, and VIN/engine/chassis information where variants exist.
Key Details
- SKU
- AF828
- Component
- Rear Parking Brake Shoe Set
- OEM References
-
- BMW: 34116761291
- BMW: 34212213310
- BMW: 34411163244
- BMW: 34411163255
- BMW: 34411165968
- BMW: 34411165986
- BMW: 34416755273
- Primary Fitment
- BMW 1 Series E81 N45 B16 A (09/2007-12/2011)
- Specs
- Ate brake system, 160 mm drum diameter, 20 mm width, 3.3 mm thickness, 0.848 kg
Key Benefits
- Seven BMW OEM reference numbers listed for cross-referencing before ordering.
- Specified for Ate brake system with 160 mm inner drum diameter and 20 mm shoe width.
OEM Reference Numbers
- BMW: 34116761291
- BMW: 34212213310
- BMW: 34411163244
- BMW: 34411163255
- BMW: 34411165968
- BMW: 34411165986
- BMW: 34416755273
Product Specifications
| Specification | Details |
|---|---|
| Brake System | Ate |
| Width | 20 mm |
| Thickness | 3.3 mm |
| Inner Brake Drum Diameter | 160 mm |
| Weight | 0.848 kg |
| Packaging Dimensions | 20.2 × 12.8 × 8.6 cm |
Vehicle Fitment
Includes 289 supplied applications.
View Full Vehicle Fitment (289 applications)
| Application | Engine | Fuel | Power | Years |
|---|---|---|---|---|
| 1 Series 116i (E81) | N45 B16 A | Petrol 1.6 | 85kW/115PS | 09/2007-12/2011 |
| 1 Series 116i (E81) | N43 B16 AA | Petrol 1.6 | 90kW/122PS | 03/2007-12/2011 |
| 1 Series 118i (E81) | N43 B20 A | Petrol 2.0 | 105kW/143PS | 09/2006-12/2011 |
| 1 Series 120i (E81) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 03/2007-09/2012 |
| 1 Series 120i (E81) | N46 B20 B; N46 B20 C | Petrol 2.0 | 115kW/156PS | 03/2007-12/2011 |
| 1 Series 116i (E81) | N43 B20 A | Petrol 2.0 | 90kW/122PS | 11/2008-12/2011 |
| 1 Series 120i (E81) | N43 B20 A | Petrol 2.0 | 120kW/163PS | 03/2007-12/2011 |
| 1 Series 118i (E81) | N46 B20 B | Petrol 2.0 | 100kW/136PS | 09/2006-12/2011 |
| 1 Series 120d (E81) | N47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 03/2007-12/2011 |
| 1 Series 118d (E81) | N47 D20 A; N47 D20 C | Diesel 2.0 | 105kW/143PS | 09/2006-12/2011 |
| 1 Series 120d (E81) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 03/2007-12/2011 |
| 1 Series 116d (E81) | N47 D20 A; N47 D20 C | Diesel 2.0 | 85kW/116PS | 11/2008-12/2011 |
| 1 Series 118d (E81) | N47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 09/2006-12/2011 |
| 1 Series 116d (E81) | N47 D20 A; N47 D20 C | Diesel 2.0 | 66kW/90PS | 01/2011-12/2011 |
| 1 Series 120i Coupe (E82) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 10/2007-10/2013 |
| 1 Series 120i Coupe (E82) | N46 B20 B; N46 B20 E; N46 B20 BD; N46 B20 C | Petrol 2.0 | 115kW/156PS | 09/2009-10/2013 |
| 1 Series 125i Coupe (E82) | N52 B30 BF; N52 B30 A; N52 B30 B | Petrol 3.0 | 160kW/218PS | 03/2008-10/2013 |
| 1 Series 118d Coupe (E82) | N47 D20 C | Diesel 2.0 | 100kW/136PS | 09/2009-10/2013 |
| 1 Series 120d Coupe (E82) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 09/2007-10/2013 |
| 1 Series 120d Coupe (E82) | N47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 09/2007-10/2013 |
| 1 Series 118d Coupe (E82) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 09/2009-10/2013 |
| 1 Series 120i Convertible (E88) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 12/2007-10/2013 |
| 1 Series 118i Convertible (E88) | N43 B20 A | Petrol 2.0 | 105kW/143PS | 03/2008-10/2013 |
| 1 Series 120i Convertible (E88) | N43 B20 A | Petrol 2.0 | 120kW/163PS | 03/2008-12/2013 |
| 1 Series 120i Convertible (E88) | N46 B20 B; N46 B20 E; N46 B20 C | Petrol 2.0 | 115kW/156PS | 03/2008-12/2013 |
| 1 Series 118i Convertible (E88) | N46 B20 B | Petrol 2.0 | 100kW/136PS | 09/2008-12/2013 |
| 1 Series 125i Convertible (E88) | N52 B30 BF; N52 B30 A; N52 B30 B | Petrol 3.0 | 160kW/218PS | 12/2007-10/2013 |
| 1 Series 120d Convertible (E88) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 03/2008-12/2013 |
| 1 Series 118d Convertible (E88) | N47 D20 A; N47 D20 C | Diesel 2.0 | 105kW/143PS | 09/2008-12/2013 |
| 1 Series 120d Convertible (E88) | N47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 03/2008-12/2013 |
| 1 Series 118d Convertible (E88) | N47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 09/2008-12/2013 |
| 1 Series 120d Convertible (E88) | N47 D20 C | Diesel 2.0 | 145kW/197PS | 03/2008-12/2013 |
| 1 Series 116d (F20) | B37 D15 A | Diesel 1.5 | 85kW/116PS | 03/2015-06/2019 |
| 1 Series 114d (F20) | B37 D15 A | Diesel 1.5 | 70kW/95PS | 07/2015-06/2019 |
| 1 Series 116d (F20) | N47 D16 A | Diesel 1.6 | 85kW/116PS | 03/2012-02/2015 |
| 1 Series 114d (F20) | N47 D16 A | Diesel 1.6 | 70kW/95PS | 11/2012-06/2015 |
| 1 Series 125d (F20) | B47 D20 B; N47 D20 D | Diesel 2.0 | 155kW/211PS | 03/2012-06/2019 |
| 1 Series 120d (F20) | B47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 07/2011-06/2019 |
| 1 Series 118d (F20) | B47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 07/2011-06/2019 |
| 1 Series 116d (F20) | N47 D20 C | Diesel 2.0 | 85kW/116PS | 07/2011-02/2015 |
| 1 Series 118d (F20) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 07/2011-02/2015 |
| 1 Series 120d (F20) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 07/2011-02/2015 |
| 1 Series 125d (F20) | N47 D20 D | Diesel 2.0 | 160kW/218PS | 03/2012-02/2015 |
| 1 Series 120d xDrive (F20) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 11/2012-02/2015 |
| 1 Series 118d xDrive (F20) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 07/2013-02/2015 |
| 1 Series 120d xDrive (F20) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 11/2012-02/2015 |
| 1 Series 120d (F20) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 07/2011-02/2015 |
| 1 Series 118d (F20) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 03/2015-06/2019 |
| 1 Series 118d xDrive (F20) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 03/2015-06/2019 |
| 1 Series 120d (F20) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 03/2015-06/2019 |
| 1 Series 120d xDrive (F20) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 03/2015-06/2019 |
| 1 Series 125d (F20) | B47 D20 B | Diesel 2.0 | 165kW/224PS | 03/2015-06/2019 |
| 1 Series 116i (F20) | B38 B15 A | Petrol 1.5 | 80kW/109PS | 03/2015-06/2019 |
| 1 Series 118i (F20) | B38 B15 A | Petrol 1.5 | 100kW/136PS | 07/2015-06/2019 |
| 1 Series 116i (F20) | N13 B16 A | Petrol 1.6 | 100kW/136PS | 07/2011-02/2015 |
| 1 Series 118i (F20) | N13 B16 A | Petrol 1.6 | 125kW/170PS | 07/2011-02/2015 |
| 1 Series 114i (F20) | N13 B16 A | Petrol 1.6 | 75kW/102PS | 07/2012-02/2015 |
| 1 Series 118i (F20) | N13 B16 A | Petrol 1.6 | 100kW/136PS | 03/2015-06/2015 |
| 1 Series 120i (F20) | N13 B16 A | Petrol 1.6 | 130kW/177PS | 03/2015-06/2016 |
| 1 Series 125i (F20) | N20 B20 A | Petrol 2.0 | 160kW/218PS | 03/2012-11/2017 |
| 1 Series 125i (F20) | N20 B20 A | Petrol 2.0 | 175kW/238PS | 03/2012-11/2017 |
| 1 Series M 135i (F20) | N55 B30 A | Petrol 3.0 | 235kW/320PS | 07/2012-02/2015 |
| 1 Series M 135i xDrive (F20) | N55 B30 A | Petrol 3.0 | 235kW/320PS | 11/2012-02/2015 |
| 1 Series M 135i (F20) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 03/2015-06/2016 |
| 1 Series M 135i xDrive (F20) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 03/2015-06/2016 |
| 1 Series 116i (E87) | N45 B16 A | Petrol 1.6 | 85kW/115PS | 06/2004-06/2011 |
| 1 Series 116i (E87) | N43 B16 AA | Petrol 1.6 | 90kW/122PS | 09/2007-06/2011 |
| 1 Series 116i (E87) | N43 B20 A | Petrol 2.0 | 90kW/122PS | 01/2009-06/2011 |
| 1 Series 118i (E87) | N46 B20 B | Petrol 2.0 | 95kW/129PS | 07/2004-02/2007 |
| 1 Series 118i (E87) | N46 B20 B | Petrol 2.0 | 100kW/136PS | 10/2006-06/2011 |
| 1 Series 118i (E87) | N43 B20 A | Petrol 2.0 | 105kW/143PS | 09/2006-06/2011 |
| 1 Series 120i (E87) | N46 B20 B; N46 B20 CC; N46 B20 BD; N46 B20 C | Petrol 2.0 | 110kW/150PS | 06/2004-02/2007 |
| 1 Series 120i (E87) | N46 B20 B; N46 B20 CC; N46 B20 E; N46 B20 A; N46 B20 BD; N46 B20 C | Petrol 2.0 | 115kW/156PS | 03/2007-06/2011 |
| 1 Series 120i (E87) | N43 B20 A | Petrol 2.0 | 120kW/163PS | 03/2007-06/2011 |
| 1 Series 120i (E87) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 03/2007-06/2011 |
| 1 Series 116d (E87) | N47 D20 A; N47 D20 C | Diesel 2.0 | 85kW/116PS | 03/2009-06/2011 |
| 1 Series 118d (E87) | M47 D20 (204D4) | Diesel 2.0 | 90kW/122PS | 06/2004-02/2007 |
| 1 Series 118d (E87) | N47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 03/2007-06/2011 |
| 1 Series 118d (E87) | N47 D20 A; N47 D20 C | Diesel 2.0 | 105kW/143PS | 03/2007-06/2011 |
| 1 Series 120d (E87) | M47 D20 (204D4); N47 D20 A | Diesel 2.0 | 120kW/163PS | 06/2004-06/2011 |
| 1 Series 120d (E87) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 03/2007-06/2011 |
| 1 Series 116d (E87) | N47 D20 C | Diesel 2.0 | 66kW/90PS | 01/2011-12/2011 |
| 1 Series 116 d (F21) | B37 D15 A | Diesel 1.5 | 85kW/116PS | 03/2015-05/2019 |
| 1 Series 114 d (F21) | B37 D15 A | Diesel 1.5 | 70kW/95PS | 06/2015-05/2019 |
| 1 Series 114 d (F21) | N47 D16 A | Diesel 1.6 | 70kW/95PS | 07/2012-05/2019 |
| 1 Series 116 d (F21) | N47 D16 A | Diesel 1.6 | 85kW/116PS | 12/2011-02/2015 |
| 1 Series 118 d xDrive (F21) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 05/2013-02/2015 |
| 1 Series 116 d (F21) | N47 D20 C | Diesel 2.0 | 85kW/116PS | 07/2012-02/2015 |
| 1 Series 118 d (F21) | N47 D20 C | Diesel 2.0 | 100kW/136PS | 12/2011-06/2019 |
| 1 Series 118 d (F21) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 12/2011-02/2015 |
| 1 Series 120 d (F21) | N47 D20 C | Diesel 2.0 | 120kW/163PS | 07/2012-06/2019 |
| 1 Series 120 d (F21) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 07/2012-02/2015 |
| 1 Series 120 d xDrive (F21) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 02/2012-02/2015 |
| 1 Series 125 d (F21) | N47 D20 D | Diesel 2.0 | 155kW/211PS | 12/2011-05/2019 |
| 1 Series 125 d (F21) | N47 D20 D | Diesel 2.0 | 160kW/218PS | 12/2011-02/2015 |
| 1 Series 120 d xDrive (F21) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 01/2012-02/2015 |
| 1 Series 120 d (F21) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 01/2012-02/2015 |
| 1 Series 118 d (F21) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 03/2015-06/2019 |
| 1 Series 118 d xDrive (F21) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 03/2015-05/2019 |
| 1 Series 120 d (F21) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 03/2015-06/2019 |
| 1 Series 120 d xDrive (F21) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 03/2015-06/2019 |
| 1 Series 125 d (F21) | B47 D20 B | Diesel 2.0 | 165kW/224PS | 03/2015-05/2019 |
| 1 Series 116 i (F21) | B38 B15 A | Petrol 1.5 | 80kW/109PS | 03/2015-06/2019 |
| 1 Series 118 i (F21) | B38 B15 A | Petrol 1.5 | 100kW/136PS | 03/2015-06/2019 |
| 1 Series 114 i (F21) | N13 B16 A | Petrol 1.6 | 75kW/102PS | 07/2012-01/2015 |
| 1 Series 116 i (F21) | N13 B16 A | Petrol 1.6 | 100kW/136PS | 12/2011-02/2015 |
| 1 Series 118 i (F21) | N13 B16 A | Petrol 1.6 | 125kW/170PS | 07/2012-06/2019 |
| 1 Series 118 i (F21) | N13 B16 A | Petrol 1.6 | 100kW/136PS | 03/2015-06/2019 |
| 1 Series 120 i (F21) | N13 B16 A | Petrol 1.6 | 130kW/177PS | 03/2015-06/2019 |
| 1 Series 125 i (F21) | N20 B20 A | Petrol 2.0 | 160kW/218PS | 12/2011-12/2019 |
| 1 Series 125 i (F21) | N20 B20 A | Petrol 2.0 | 175kW/238PS | 03/2013-06/2019 |
| 1 Series M 135 i (F21) | N55 B30 A | Petrol 3.0 | 235kW/320PS | 12/2011-06/2016 |
| 1 Series M 135 i xDrive (F21) | N55 B30 A | Petrol 3.0 | 235kW/320PS | 02/2012-06/2016 |
| 1 Series M 135 i (F21) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 03/2015-06/2016 |
| 1 Series M 135 i xDrive (F21) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 03/2015-06/2016 |
| 1 Series 120 i (F21) | B48 B20 A | Petrol 2.0 | 135kW/184PS | 07/2016-06/2019 |
| 1 Series 125 i (F21) | B48 B20 B | Petrol 2.0 | 165kW/224PS | 10/2015-06/2019 |
| 1 Series M 140 i (F21) | B58 B30 A | Petrol 3.0 | 250kW/340PS | 10/2015-06/2019 |
| 1 Series M 140 i xDrive (F21) | B58 B30 A | Petrol 3.0 | 250kW/340PS | 09/2015-06/2019 |
| 1 Series 220 d (F21) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 10/2013-06/2017 |
| 1 Series 218 d (F21) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 03/2014-06/2015 |
| 1 Series 225 d (F21) | N47 D20 D | Diesel 2.0 | 160kW/218PS | 01/2014-06/2017 |
| 1 Series 220 d (F21) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 10/2012-11/2014 |
| 1 Series 220 d (F21) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 03/2014-09/2020 |
| 1 Series 220 d xDrive (F21) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 06/2014-09/2020 |
| 1 Series 218 d (F21) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 07/2015-09/2020 |
| 1 Series 225 d (F21) | B47 D20 B | Diesel 2.0 | 165kW/224PS | 07/2015-05/2019 |
| 1 Series 218 d (F21) | B47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 03/2014-09/2020 |
| 1 Series 220 d (F21) | B47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 11/2014-09/2020 |
| 1 Series 220 d xDrive (F21) | B47 D20 A | Diesel 2.0 | 120kW/163PS | 03/2015-09/2020 |
| 1 Series 218 i (F21) | B38 B15 A | Petrol 1.5 | 100kW/136PS | 03/2015-06/2021 |
| 1 Series 220 i (F21) | N20 B20 B; N20 B20 A | Petrol 2.0 | 135kW/184PS | 10/2013-06/2021 |
| 1 Series 228 i (F21) | N26 B20 A; N20 B20 A | Petrol 2.0 | 180kW/245PS | 07/2014-06/2016 |
| 1 Series M 235 i (F21) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 10/2013-06/2016 |
| 1 Series M 235 i xDrive (F21) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 07/2014-06/2016 |
| 1 Series 220 i (F21) | B48 B20 A | Petrol 2.0 | 135kW/184PS | 09/2015-06/2021 |
| 1 Series 230 i (F21) | B46 B20 B; B48 B20 B | Petrol 2.0 | 185kW/252PS | 07/2016-06/2021 |
| 1 Series M 240 i (F21) | B58 B30 A | Petrol 3.0 | 250kW/340PS | 09/2015-06/2021 |
| 1 Series M 240 i xDrive (F21) | B58 B30 A | Petrol 3.0 | 250kW/340PS | 09/2015-06/2021 |
| 2 Series 218 i Convertible (F23) | B38 B15 A | Petrol 1.5 | 100kW/136PS | 03/2015-06/2021 |
| 2 Series 220 i Convertible (F23) | N20 B20 B; N20 B20 A | Petrol 2.0 | 135kW/184PS | 04/2014-06/2021 |
| 2 Series 228 i Convertible (F23) | N20 B20 A | Petrol 2.0 | 180kW/245PS | 11/2014-06/2016 |
| 2 Series M 235 i Convertible (F23) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 11/2014-06/2016 |
| 2 Series M 235 i xDrive Convertible (F23) | N55 B30 A | Petrol 3.0 | 240kW/326PS | 07/2015-06/2016 |
| 2 Series 220 d Convertible (F23) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 03/2014-09/2020 |
| 2 Series 218 d Convertible (F23) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 07/2015-09/2020 |
| 2 Series 225 d Convertible (F23) | B47 D20 B | Diesel 2.0 | 165kW/224PS | 07/2015-05/2019 |
| 2 Series 220 d Convertible (F23) | B47 D20 A | Diesel 2.0 | 120kW/163PS | 03/2014-09/2020 |
| 2 Series 218 d Convertible (F23) | B47 D20 A | Diesel 2.0 | 100kW/136PS | 07/2015-09/2020 |
| 2 Series 220 i Convertible (F23) | B48 B20 A | Petrol 2.0 | 135kW/184PS | 09/2015-06/2021 |
| 2 Series 230 i Convertible (F23) | B46 B20 B; B48 B20 B | Petrol 2.0 | 185kW/252PS | 07/2016-06/2021 |
| 2 Series M 240 i Convertible (F23) | B58 B30 A | Petrol 3.0 | 250kW/340PS | 09/2015-06/2021 |
| 2 Series M 240 i xDrive Convertible (F23) | B58 B30 A | Petrol 3.0 | 250kW/340PS | 09/2015-06/2021 |
| 3 Series 316 ti Compact (E46) | N40 B16 A | Petrol 1.6 | 77kW/105PS | 06/2002-02/2005 |
| 3 Series 316 ti Compact (E46) | N40 B16 A; N45 B16 A | Petrol 1.6 | 85kW/115PS | 06/2002-02/2005 |
| 3 Series 316 ti Compact (E46) | N46 B18 A; N42 B18 A | Petrol 1.8 | 85kW/115PS | 06/2001-02/2005 |
| 3 Series 318 ti Compact (E46) | N42 B20 A; N46 B20 A | Petrol 2.0 | 105kW/143PS | 03/2001-12/2004 |
| 3 Series 325 ti Compact (E46) | M54 B25 (256S5) | Petrol 2.5 | 141kW/192PS | 04/2001-12/2004 |
| 3 Series 320 td Compact (E46) | M47 D20 (204D4) | Diesel 2.0 | 110kW/150PS | 09/2001-02/2005 |
| 3 Series 318 td Compact (E46) | M47 D20 (204D4) | Diesel 2.0 | 85kW/115PS | 03/2003-02/2005 |
| 3 Series 320 td Compact (E46) | M47 D20 (204D4) | Diesel 2.0 | 100kW/136PS | 10/2001-12/2002 |
| 3 Series 316 i (E46) | M43 B16 (164E3) | Petrol 1.6 | 77kW/105PS | 04/2000-02/2005 |
| 3 Series 316 i (E46) | N40 B16 A; N45 B16 A | Petrol 1.6 | 85kW/115PS | 06/2002-02/2005 |
| 3 Series 316 i (E46) | N46 B18 A; N42 B18 A | Petrol 1.8 | 85kW/115PS | 02/2002-02/2005 |
| 3 Series 318 i (E46) | M43 B19 (194E1) | Petrol 1.9 | 87kW/118PS | 12/1997-09/2001 |
| 3 Series 316 i (E46) | M43 B19 (194E1) | Petrol 1.9 | 77kW/105PS | 12/1998-02/2002 |
| 3 Series 320 i (E46) | M52 B20 (206S4) | Petrol 2.0 | 110kW/150PS | 03/1998-09/2000 |
| 3 Series 318 i (E46) | N42 B20 A; N46 B20 A; N46 B20 C | Petrol 2.0 | 105kW/143PS | 09/2001-02/2005 |
| 3 Series 320 i (E46) | M54 B22 (226S1) | Petrol 2.2 | 125kW/170PS | 09/2000-02/2005 |
| 3 Series 323 i (E46) | M52 B25 (256S4) | Petrol 2.5 | 125kW/170PS | 03/1998-09/2000 |
| 3 Series 325 i (E46) | M54 B25 (256S5) | Petrol 2.5 | 141kW/192PS | 09/2000-02/2005 |
| 3 Series 328 i (E46) | M52 B28 (286S2) | Petrol 2.8 | 142kW/193PS | 02/1998-06/2000 |
| 3 Series 320 d (E46) | M47 D20 (204D1) | Diesel 2.0 | 100kW/136PS | 04/1998-09/2001 |
| 3 Series 320 d (E46) | M47 D20 (204D4) | Diesel 2.0 | 110kW/150PS | 09/2001-05/2005 |
| 3 Series 318 d (E46) | M47 D20 (204D1) | Diesel 2.0 | 85kW/116PS | 09/2001-03/2003 |
| 3 Series 318 d (E46) | M47 D20 (204D4) | Diesel 2.0 | 85kW/116PS | 03/2003-02/2005 |
| 3 Series 320 d (E46) | M47 D20 (204D1) | Diesel 2.0 | 95kW/129PS | 02/1998-08/2001 |
| 3 Series 316 i Touring (E46) | N46 B18 A; N42 B18 A | Petrol 1.8 | 85kW/115PS | 03/2002-02/2005 |
| 3 Series 318 i Touring (E46) | M43 B19 (194E1) | Petrol 1.9 | 87kW/118PS | 10/1999-09/2001 |
| 3 Series 318 i Touring (E46) | M43 B19 (194E1) | Petrol 1.9 | 85kW/116PS | 10/1999-09/2001 |
| 3 Series 320 i Touring (E46) | M52 B20 (206S4) | Petrol 2.0 | 110kW/150PS | 10/1999-09/2000 |
| 3 Series 318 i Touring (E46) | N42 B20 A; N46 B20 A; N46 B20 C | Petrol 2.0 | 105kW/143PS | 09/2001-07/2005 |
| 3 Series 320 i Touring (E46) | M54 B22 (226S1) | Petrol 2.2 | 125kW/170PS | 09/2000-02/2005 |
| 3 Series 325 i Touring (E46) | M54 B25 (256S5) | Petrol 2.5 | 141kW/192PS | 09/2000-02/2005 |
| 3 Series 328 i Touring (E46) | M52 B28 (286S2) | Petrol 2.8 | 142kW/193PS | 06/1999-05/2000 |
| 3 Series 320 d Touring (E46) | M47 D20 (204D1) | Diesel 2.0 | 100kW/136PS | 03/2000-09/2001 |
| 3 Series 320 d Touring (E46) | M47 D20 (204D4) | Diesel 2.0 | 110kW/150PS | 09/2001-02/2005 |
| 3 Series 318 d Touring (E46) | M47 D20 (204D1) | Diesel 2.0 | 85kW/115PS | 10/2002-03/2003 |
| 3 Series 318 d Touring (E46) | M47 D20 (204D4) | Diesel 2.0 | 85kW/116PS | 03/2003-02/2005 |
| 3 Series 318 Ci Convertible (E46) | N42 B20 A; N46 B20 A | Petrol 2.0 | 105kW/143PS | 09/2001-12/2007 |
| 3 Series 318 Ci Convertible (E46) | N46 B20 A; N46 B20 C | Petrol 2.0 | 110kW/150PS | 03/2004-08/2006 |
| 3 Series 320 Ci Convertible (E46) | M54 B22 (226S1) | Petrol 2.2 | 125kW/170PS | 09/2000-12/2007 |
| 3 Series 320 Ci Convertible (E46) | M54 B22 (226S1) | Petrol 2.2 | 120kW/163PS | 01/2006-12/2007 |
| 3 Series 323 Ci Convertible (E46) | M52 B25 (256S4) | Petrol 2.5 | 125kW/170PS | 04/2000-09/2000 |
| 3 Series 325 Ci Convertible (E46) | M54 B25 (256S5) | Petrol 2.5 | 141kW/192PS | 09/2000-08/2006 |
| 3 Series 320 Cd Convertible (E46) | M47 D20 (204D4) | Diesel 2.0 | 110kW/150PS | 02/2005-12/2007 |
| 3 Series 318 d (E90) | N47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 09/2007-10/2011 |
| 3 Series 320 d (E90) | M47 D20 (204D4); N47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 12/2004-10/2011 |
| 3 Series 318 d (E90) | M47 D20 (204D4) | Diesel 2.0 | 90kW/122PS | 03/2005-08/2007 |
| 3 Series 320 d (E90) | M47 D20 (204D4) | Diesel 2.0 | 110kW/150PS | 12/2004-09/2007 |
| 3 Series 318 d (E90) | N47 D20 A; N47 D20 C | Diesel 2.0 | 105kW/143PS | 02/2007-10/2011 |
| 3 Series 320 d (E90) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 09/2007-02/2010 |
| 3 Series 316 d (E90) | N47 D20 C | Diesel 2.0 | 85kW/116PS | 07/2009-12/2011 |
| 3 Series 320 d (E90) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 03/2010-10/2011 |
| 3 Series 325 d (E90) | M57 D30 (306D3) | Diesel 3.0 | 145kW/197PS | 09/2006-02/2010 |
| 3 Series 316 i (E90) | N45 B16 A; N45 B16 AC | Petrol 1.6 | 85kW/115PS | 09/2005-10/2011 |
| 3 Series 316 i (E90) | N43 B16 AA; N43 B16 A | Petrol 1.6 | 90kW/122PS | 09/2007-10/2011 |
| 3 Series 320 i (E90) | N46 B20 B; N46 B20 CB; N46 B20 BD; N46 B20 C | Petrol 2.0 | 110kW/150PS | 12/2004-08/2007 |
| 3 Series 318 i (E90) | N46 B20 B | Petrol 2.0 | 95kW/129PS | 09/2005-08/2007 |
| 3 Series 318 i (E90) | N43 B20 A | Petrol 2.0 | 105kW/143PS | 09/2007-10/2011 |
| 3 Series 320 i (E90) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 09/2007-10/2011 |
| 3 Series 320 i (E90) | N46 B20 B; N46 B20 CC; N46 B20 CD; N46 B20 E; N46 B20 C | Petrol 2.0 | 115kW/156PS | 02/2007-12/2011 |
| 3 Series 318 i (E90) | N46 B20 B; N46 B20 CC; N46 B20 CD; N46 B20 E; N46 B20 C | Petrol 2.0 | 100kW/136PS | 09/2007-10/2011 |
| 3 Series 325 i (E90) | N52 B25 A; N52 B25 B; N52 B25 BF | Petrol 2.5 | 160kW/218PS | 12/2004-12/2011 |
| 3 Series 323 i (E90) | N52 B25 A; N52 B25 B; N52 B25 BF; N52 B25 BE | Petrol 2.5 | 130kW/177PS | 09/2005-02/2007 |
| 3 Series 325 i (E90) | N52 B25 A | Petrol 2.5 | 155kW/211PS | 01/2006-12/2011 |
| 3 Series 323 i (E90) | N52 B25 A; N52 B25 BF | Petrol 2.5 | 140kW/190PS | 03/2007-12/2011 |
| 3 Series 325 i (E90) | N53 B30 A | Petrol 3.0 | 160kW/218PS | 03/2007-12/2011 |
| 3 Series 320 i (E90) | N43 B20 A | Petrol 2.0 | 120kW/163PS | 03/2007-12/2011 |
| 3 Series 328 i (E90) | N52 B30 A; N51 B30 A | Petrol 3.0 | 172kW/234PS | 09/2006-12/2011 |
| 3 Series 316 i Touring (E91) | N43 B16 AA | Petrol 1.6 | 90kW/122PS | 09/2008-06/2012 |
| 3 Series 318 i Touring (E91) | N46 B20 B | Petrol 2.0 | 100kW/136PS | 09/2007-03/2012 |
| 3 Series 320 i Touring (E91) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 02/2007-12/2012 |
| 3 Series 316 d Touring (E91) | N47 D20 C | Diesel 2.0 | 85kW/116PS | 09/2009-06/2012 |
| 3 Series 318 d Touring (E91) | N47 D20 A; N47 D20 C | Diesel 2.0 | 105kW/143PS | 09/2007-06/2012 |
| 3 Series 320 d Touring (E91) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 02/2007-12/2010 |
| 3 Series 320 d Touring (E91) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 03/2010-05/2012 |
| 3 Series 320 d xDrive Touring (E91) | N47 D20 C | Diesel 2.0 | 145kW/197PS | 02/2008-02/2010 |
| 3 Series 316 i Coupe (E92) | N43 B16 AA | Petrol 1.6 | 90kW/122PS | 09/2007-06/2013 |
| 3 Series 318 i Coupe (E92) | N43 B20 A | Petrol 2.0 | 105kW/143PS | 03/2010-12/2013 |
| 3 Series 320 i Coupe (E92) | N43 B20 A | Petrol 2.0 | 125kW/170PS | 03/2007-06/2013 |
| 3 Series 320 i Coupe (E92) | N43 B20 A | Petrol 2.0 | 120kW/163PS | 01/2007-06/2013 |
| 3 Series 320 i Coupe (E92) | N46 B20 B | Petrol 2.0 | 115kW/156PS | 06/2007-12/2013 |
| 3 Series 325 i Coupe (E92) | N52 B25 A; N52 B25 AF; N52 B25 BF | Petrol 2.5 | 160kW/218PS | 06/2006-02/2010 |
| 3 Series 325 i Coupe (E92) | N53 B30 A | Petrol 3.0 | 160kW/218PS | 09/2007-06/2013 |
| 3 Series 325 i Coupe (E92) | N53 B30 A | Petrol 3.0 | 155kW/211PS | 03/2010-06/2013 |
| 3 Series 320 d Coupe (E92) | N47 D20 A; N47 D20 C | Diesel 2.0 | 130kW/177PS | 09/2006-02/2010 |
| 3 Series 320 d Coupe (E92) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 03/2010-06/2013 |
| 3 Series 320 d Coupe (E92) | N47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 03/2007-06/2013 |
| 3 Series 328 i Coupe (E92) | N52 B30 A; N51 B30 A | Petrol 3.0 | 172kW/234PS | 06/2006-06/2013 |
| 3 Series 318 i Convertible (E93) | N43 B20 A | Petrol 2.0 | 105kW/143PS | 03/2010-12/2013 |
| 3 Series 320 i Convertible (E93) | N46 B20 B; N46 B20 E | Petrol 2.0 | 115kW/156PS | 01/2007-08/2013 |
| 3 Series 318 i Convertible (E93) | B38 B15 A | Petrol 1.5 | 100kW/136PS | 07/2015-10/2018 |
| 3 Series 316 i Convertible (E93) | N13 B16 A | Petrol 1.6 | 100kW/136PS | 07/2012-08/2016 |
| 3 Series 320 i Convertible (E93) | N13 B16 A | Petrol 1.6 | 125kW/170PS | 11/2012-06/2016 |
| 3 Series 328 i Convertible (E93) | N26 B20 A; N20 B20 C; N20 B20 A | Petrol 2.0 | 180kW/245PS | 11/2011-10/2018 |
| 3 Series 320 i Convertible (E93) | N20 B20 D; N20 B20 B; N20 B20 A | Petrol 2.0 | 135kW/184PS | 03/2012-10/2018 |
| 3 Series 320 i Convertible (E93) | B48 B20 A | Petrol 2.0 | 135kW/184PS | 07/2015-10/2018 |
| 3 Series 320 d Convertible (E93) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 11/2011-03/2016 |
| 3 Series 320 d Convertible (E93) | B47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 11/2011-10/2018 |
| 3 Series 316 d Convertible (E93) | B47 D20 A; N47 D20 C | Diesel 2.0 | 85kW/116PS | 03/2012-10/2018 |
| 3 Series 318 d Convertible (E93) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 03/2012-06/2015 |
| 3 Series 318 d Convertible (E93) | B47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 03/2012-10/2018 |
| 3 Series 325 d Convertible (E93) | N47 D20 D | Diesel 2.0 | 160kW/218PS | 03/2013-02/2016 |
| 3 Series 320 d Convertible (E93) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 11/2011-03/2016 |
| 3 Series 318 d Convertible (E93) | B47 D20 A | Diesel 2.0 | 110kW/150PS | 07/2015-10/2018 |
| 3 Series 320 d Convertible (E93) | B47 D20 A | Diesel 2.0 | 140kW/190PS | 07/2015-10/2018 |
| 3 Series 325 d Convertible (E93) | N47 D20 D | Diesel 2.0 | 155kW/211PS | 03/2013-02/2016 |
| 3 Series 316 i Touring (F31) | N13 B16 A | Petrol 1.6 | 100kW/136PS | 03/2013-06/2015 |
| 3 Series 320 i Touring (F31) | N20 B20 B | Petrol 2.0 | 135kW/184PS | 11/2012-06/2015 |
| 3 Series 316 d Touring (F31) | B47 D20 A; N47 D20 C | Diesel 2.0 | 85kW/116PS | 11/2012-06/2019 |
| 3 Series 318 d Touring (F31) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 11/2012-06/2015 |
| 3 Series 320 d Touring (F31) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 07/2012-02/2016 |
| 3 Series 320 d Touring (F31) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 07/2012-02/2016 |
| 3 Series 318 d Touring (F31) | B47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 11/2012-06/2019 |
| 3 Series 420 i Touring (F31) | N20 B20 B; N20 B20 A | Petrol 2.0 | 135kW/184PS | 11/2013-02/2017 |
| 3 Series 420 i Touring (F31) | N20 B20 B; N20 B20 A | Petrol 2.0 | 120kW/163PS | 11/2013-02/2017 |
| 3 Series 420 d Touring (F31) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 07/2013-02/2015 |
| 3 Series 425 d Touring (F31) | N47 D20 D | Diesel 2.0 | 160kW/218PS | 03/2014-02/2016 |
| 3 Series 420 d Touring (F31) | B47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 07/2013-06/2020 |
| 3 Series 425 d Touring (F31) | N47 D20 D | Diesel 2.0 | 155kW/211PS | 03/2014-02/2016 |
| 3 Series 420 d Touring (F31) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 07/2013-03/2015 |
| 3 Series 420 d Touring (F31) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 10/2013-06/2015 |
| 4 Series 418 d Gran Coupe (F36) | N47 D20 C | Diesel 2.0 | 105kW/143PS | 03/2014-06/2015 |
| 4 Series 420 d Gran Coupe (F36) | N47 D20 C | Diesel 2.0 | 135kW/184PS | 03/2014-02/2015 |
| 4 Series 420 d Gran Coupe (F36) | B47 D20 A; N47 D20 C | Diesel 2.0 | 120kW/163PS | 03/2014-12/2020 |
| 4 Series 418 d Gran Coupe (F36) | B47 D20 A; N47 D20 C | Diesel 2.0 | 100kW/136PS | 03/2014-12/2020 |
| 4 Series 420 d Gran Coupe (F36) | N47 D20 C | Diesel 2.0 | 147kW/200PS | 03/2014-02/2015 |
| 4 Series 420 i Gran Coupe (F36) | N20 B20 B | Petrol 2.0 | 135kW/184PS | 03/2014-02/2017 |
| 4 Series 420 i Gran Coupe (F36) | N20 B20 B | Petrol 2.0 | 120kW/163PS | 03/2014-02/2017 |
| Z4 2.0 i Roadster (E85) | N46 B20 B | Petrol 2.0 | 110kW/150PS | 03/2005-02/2009 |
| Z4 2.2 i Roadster (E85) | M54 B22 (226S1) | Petrol 2.2 | 125kW/170PS | 10/2003-10/2005 |
| Z4 2.5 i Roadster (E85) | M54 B25 (256S5) | Petrol 2.5 | 141kW/192PS | 12/2002-12/2005 |
| Z4 2.5 i Roadster (E85) | N52 B25 A | Petrol 2.5 | 130kW/177PS | 09/2005-02/2009 |
| Z4 2.5 si Roadster (E85) | N52 B25 A | Petrol 2.5 | 160kW/218PS | 01/2006-08/2008 |
| Z4 3.0 i Roadster (E85) | M54 B30 (306S3) | Petrol 3.0 | 170kW/231PS | 12/2002-12/2005 |
| Z4 3.0 si Roadster (E85) | N52 B30 BF; N52 B30 A | Petrol 3.0 | 195kW/265PS | 01/2006-08/2008 |
| Z4 3.0 si Coupe (E86) | N52 B30 BF; N52 B30 A | Petrol 3.0 | 195kW/265PS | 04/2006-08/2008 |
Fitment Notes
- Always match OEM reference number(s) and vehicle details before ordering. Confirm exact fitment using VIN, engine code, or chassis number if multiple variants exist.
- This part covers multiple BMW model ranges, body styles, and engine variants from 1997 to 2021. Verify the correct application using the fitment table above.
Installation & Maintenance Tips
- Compare the new brake shoes to the removed set before installation to confirm the shoe width, thickness, and drum diameter match.
- Clean the drum inner surface, backing plate, and all mounting hardware before fitting the new brake shoes.
- Replace related wear hardware such as springs, clips, and retainers where applicable during installation.
- Adjust the parking brake mechanism according to the vehicle manufacturer's workshop procedure after fitting.
- After installation, verify correct parking brake operation and confirm there are no abnormal noises.
Common Questions
Does this rear parking brake shoe set fit my BMW 1 Series?
This part (AF828) is listed for the fitments shown on this page. Confirm by matching the fitment details and verifying VIN/engine/chassis information where variants exist.
What OEM part numbers does this cross-reference?
Listed cross-references: 34116761291, 34212213310, 34411163244, 34411163255, 34411165968, 34411165986, 34416755273. Match at least one OEM reference to your original part before ordering.
How do I confirm fitment if there are multiple variants?
Use VIN, engine code, and chassis/platform details and compare them to the fitment section above. If unsure, request fitment assistance before ordering.
