Vehicle Compatibility

• Ford EcoSport JK8 1.5 Ti-VCT (XZJF) 2018–2023 (DOHC Dragon)
• Ford EcoSport JK8 1.0 EcoBoost (M1JC / M1JJ / M1JU) 2017–2023 (DOHC)
• Ford EcoSport JK8 1.5 TDCi (UGJM / XUJH) 2018–2023 (SOHC)

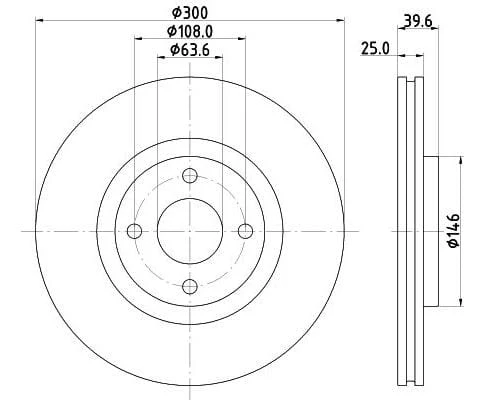

Fitment Note: This listing is for the front, vented disc with dimensions 300x25mm and height 39.6mm (06/2017-). If you are unsure, confirm with VIN or measure your existing disc before ordering.

Specifications

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter: 300 mm
• Brake Disc Thickness: 25 mm
• Height: 39.6 mm

Important: PCD, hole count, and hub centering diameter were not supplied—please verify these against your existing disc or VIN data before checkout.

Features

• Vented design supports heat dissipation for consistent braking under load
• Precision replacement disc matched to the provided dimensions for the listed EcoSport JK8 applications
• Ideal when replacing worn, scored, or warped front brake discs (inspection required)

Why Buy From Us

• South African stock with nationwide delivery
• 12-month warranty (terms apply)
• Fitment support available—share your VIN and engine code to confirm before ordering

Installation & Maintenance Tips

• Replace brake discs in pairs (left and right) to maintain balanced braking
• Inspect and, if needed, replace brake pads to prevent uneven bedding and noise
• Clean the hub face thoroughly and torque wheel bolts to manufacturer spec to reduce runout and vibration
• Bed-in the brakes correctly after fitment to stabilise friction and reduce judder
