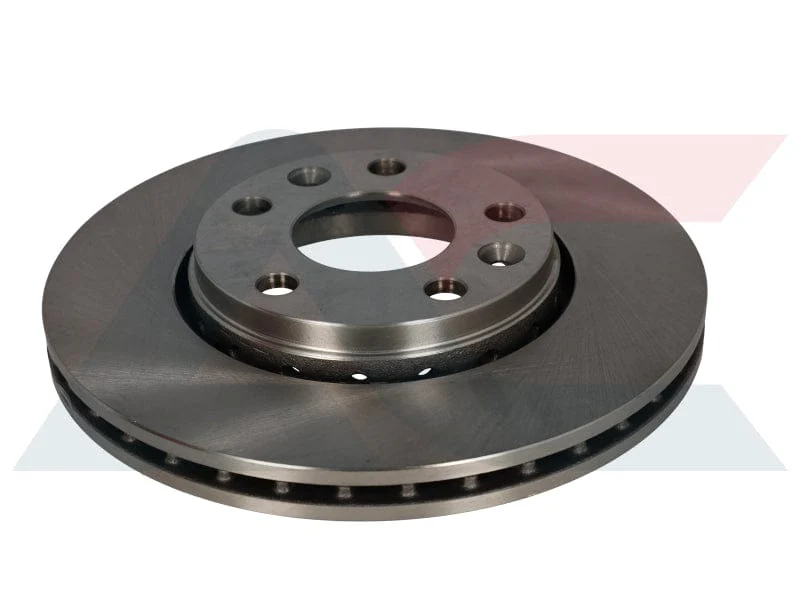

Front Brake Disc (Vented) – Renault Duster / Fluence / Megane

Front axle vented brake disc for selected Renault applications. Confirm fitment by VIN/engine code before ordering to ensure the correct disc size and mounting specification.

Vehicle Compatibility

• Renault Duster 1.5 dCi (K9K) – 2013–2018
• Renault Duster 1.6 (K4M616) – 2013–2018
• Renault Fluence 1.6 (K4M838/839) – 2011–
• Renault Fluence 2.0 (M4R714/751) – 2011–
• Renault Megane III 1.2 (H5F404) – 2013–
• Renault Megane III 1.4T (H4J700) – 2010–
• Renault Megane III 1.6 (K4M858) – 2009–
• Renault Megane III 1.6 (R9M402/404) – 2011–2015
• Renault Megane III 1.9 (F9Q872) – 2009–
• Renault Megane III 2.0T (F4R874) – 2013–
• Renault Megane IV 1.2 T (H5F408) – 2015–
• Renault Scenic III 1.6 (K4M858) – 2009–
• Renault Duster II 1.5 dCi (K9K656) – 2018–
• Renault Duster II 1.5 dCi (K9K656/858) – 2018–
• Renault Duster II 1.6 (H4M736/738) – 2018–

Specifications

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 280 mm
• Bore Diameter [mm]: 68 mm
• Centering Diameter [mm]: 68 mm
• Bolt Hole Circle Ø [mm]: 114 mm
• Number of Holes: 5
• Brake Disc Thickness [mm]: 24 mm
• Minimum thickness [mm]: 21,8 mm
• Height [mm]: 44 mm

OE Reference Numbers

• Dacia: DDF1728; 402060010R; 402063793R; 402064151R; 402067902R; 402069741R; 8660001232
• Nissan: 4020600Q0L; 4020600Q1B; 402060010R
• Renault: DDF1728; 40206001OR; 402060010R; 402063140R; 402063793R; 402064151R; 402065585R; 402067902R

Nationwide delivery available across South Africa. If you’re unsure on fitment, share your VIN and we’ll confirm the correct front brake disc specification for your vehicle.
