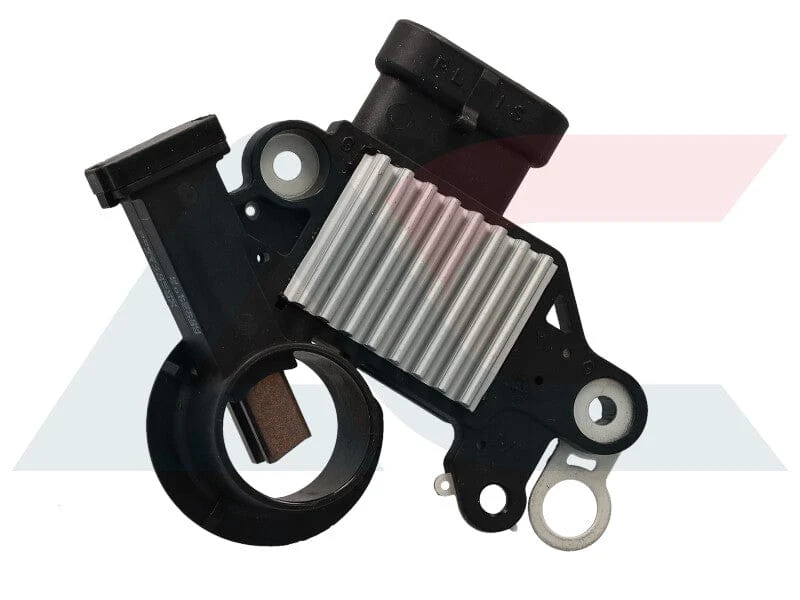

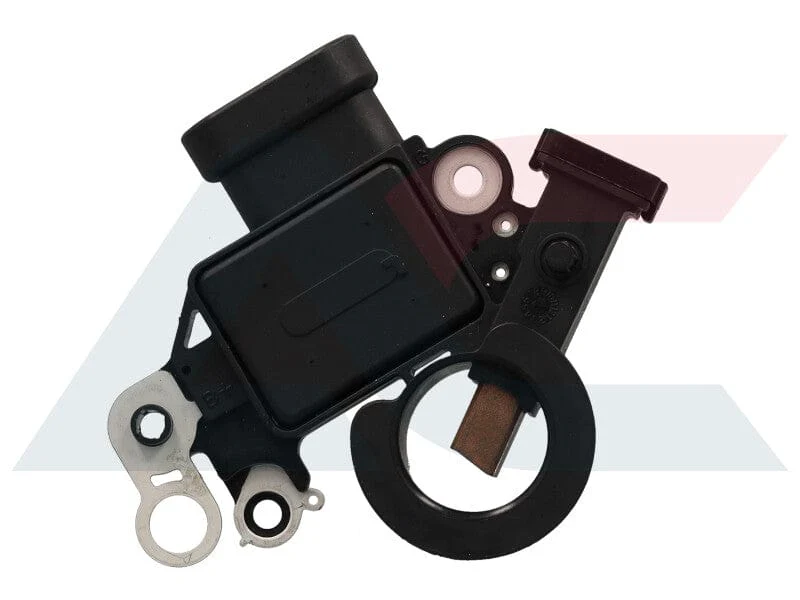

Alternator Voltage Regulator 12V Delco Korean Daewoo Chevrolet 2 Pin IDL IG Inactive Lamp REG2009
Alternator Voltage Regulator 12V Delco Korean Daewoo Chevrolet 2 Pin IDL IG Inactive Lamp REG2009
Vehicle Compatibility
Alternator voltage regulator for select Delco Korean alternator applications used on Daewoo and Chevrolet vehicles where the alternator uses a matching 2 pin IDL-IG plug layout and the same charging characteristics. Specified with 2.5 sec LRC response, inactive lamp behaviour and short circuit protection. Confirm by alternator label and plug style before ordering.
- Daewoo: Delco Korean alternator applications using 2 pin IDL-IG regulator layout
- Chevrolet: Delco Korean alternator applications using 2 pin IDL-IG regulator layout
Specifications
- Reference: REG2009
- Part Type: Alternator Voltage Regulator
- Manufacturer Restriction: Delco
- Application Type: Korean Delco (Daewoo / Chevrolet)
- System Voltage: 12V
- Operating Voltage: 14V
- Charging Voltage: 14.5V
- Connector / Pins: 2 Pin
- Plug Type: IDL-IG
- Specification: 2.5 Sec. LRC; Inactive Lamp
- Short Circuit Protection: Yes
Cross References
- Mobiletron: VR-D717
- Other Suppliers: REG2009
Features
- Delco Korean regulator specification for matched Daewoo and Chevrolet alternator configurations
- 2 pin IDL-IG plug type for correct alternator harness matching on compatible alternators
- 2.5 second LRC behaviour with inactive lamp specification for correct charge control behaviour
- 14.5V charging control for stable battery charging performance on 12V systems
- Short circuit protection to support reliability and reduce repeat failures on compatible alternator builds
Why Buy From Us
- Local South African stock with nationwide courier delivery
- 12-month warranty subject to correct application and installation
- Fitment support using alternator labels and clear photos of the existing plug and regulator
- Trusted by workshops and fleet operators for dependable charging system components
Trusted by thousands of South African drivers for quality and durability.
Installation & Maintenance Tips
- Disconnect the battery before alternator removal or voltage regulator replacement
- Confirm the connector is 2 pin and the plug type matches IDL-IG before fitting
- Inspect brushes, slip rings and internal connections while the alternator is open and replace worn parts as required
- Ensure charging circuit connections and earth points are clean and tight to prevent voltage drop and repeat failures
- After installation, verify charging voltage under load and confirm charging performance is stable
- If you are unsure about alternator repairs, have the unit fitted and tested by a qualified auto electrician
