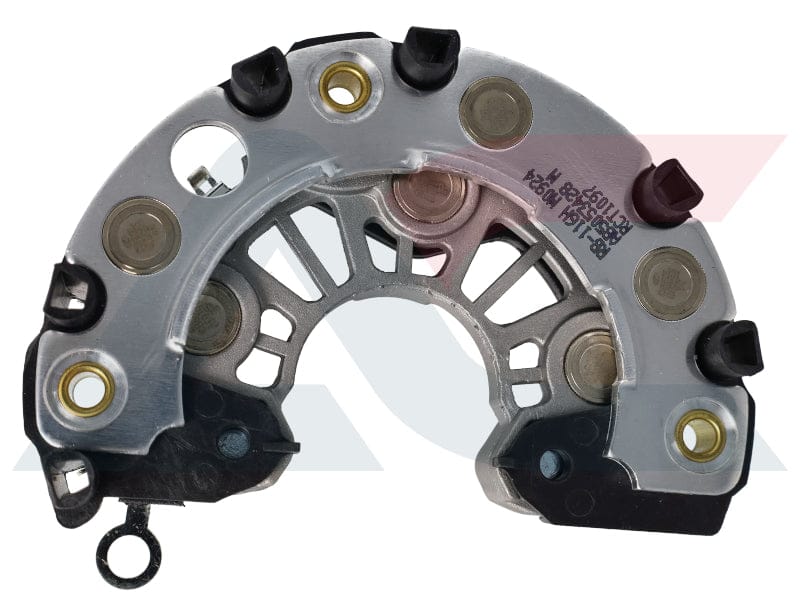

Alternator Rectifier 120mm OD 50A 6 Diode Avalanche Audi A3 Polo Beetle New Polo 1.9TDI RCT1097

Product image 1
1 / 3

Alternator Rectifier 120mm OD 50A 6 Diode Avalanche Audi A3 Polo Beetle New Polo 1.9TDI RCT1097

Vehicle Compatibility

  • Audi A3
  • Volkswagen Polo
  • Volkswagen Beetle
  • Volkswagen New Polo 1.9TDI

Confirm by alternator label and plug style before ordering.

Specifications

  • Outer Diameter: 120 mm
  • Current Strength: 50 A
  • Number of Diodes: 6
  • Diode Type: Avalanche Diode

OE Numbers

  • ALFA ROMEO / FIAT / LANCIA: 9949584
  • Iveco: 42533811
  • Iveco: 42537943
  • Iveco: 42539115
  • VAG: 038903803A

Cross References

  • Bosch: 1986AE0242
  • Bosch: F 00M 123 227[30]
  • Bosch: F 00M 123 244[30]

Features

  • Alternator rectifier for applications listed
  • 120 mm outer diameter rectifier assembly
  • 50A rated current strength (as supplied)
  • 6 diode configuration with avalanche diode type
  • OE-number and Bosch cross-reference matching for alternator repair and reconditioning

Why Buy From Us

  • Workshop-friendly support for alternator identification and matching
  • Fast nationwide courier delivery across South Africa
  • Quality-checked automotive electrical components

Trusted by thousands of South African drivers for quality and durability.

Installation & Maintenance Tips

  • Confirm by alternator label and plug style before ordering.
  • Disconnect the battery and isolate the charging circuit before alternator strip-down.
  • Measure rectifier OD and confirm diode count/type against the unit being repaired.
  • Inspect stator leads, insulators, and heat damage before fitting the new rectifier.
  • After installation, load-test the charging system and verify stable output under electrical load.
