Clutch Kit With CSC Suzuki SX4 Gen2 Suzuki Vitara Gen 4 1.6 M16A - ADK83076
Clutch Kit with Concentric Slave Cylinder - Suzuki SX4 Gen2 / Vitara 1.6 M16A - ADK83076

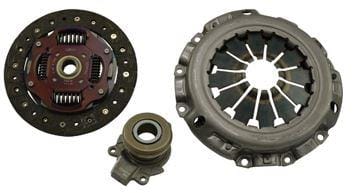

ADK83076 is a 3-piece clutch kit supplied with a concentric slave cylinder (CSC), designed for Suzuki 1.6 DOHC petrol applications using the M16A engine. This kit supports smooth engagement and restores clutch operation where the vehicle uses a hydraulic CSC release system.
Vehicle Compatibility
- Suzuki SX4 Gen2 1.6i AWD DOHC Petrol (M16A) - Body: JY - Years: 2013-2020
- Suzuki Vitara Gen 4 1.6 DOHC Petrol (M16A) - Body: LY - Years: 2015-2023
Specifications
- Part Type: Clutch Kit with Concentric Slave Cylinder (CSC)
- Kit Contents: 3-piece kit (clutch kit with CSC)
- Engine: M16A
- Engine Type: 1.6 DOHC Petrol
- Clutch Size: 200 x 22 x 20
Important Fitment Warning - Compare Before Fitting
Engine & drivetrain parts warning: This item is a fitment-critical drivetrain component. Incorrect fitment can cause clutch slip, hard shifting, hydraulic failure, gearbox removal repeat labour, or damage to related components. Vehicles may have different clutch/CSC variants within the same model range.
- Compare before attempting to fit: Confirm the clutch diameter and spline count match the old unit (200 x 22 x 20).
- Confirm the vehicle uses a concentric slave cylinder (CSC) type release system and that the CSC ports/connector orientation match your original.
- Check engine code M16A, body code (JY / LY), and AWD configuration where applicable.
- If unsure, confirm using your VIN before installation. Comparing the removed parts to the new kit is strongly recommended.
Notes
- Professional installation is recommended due to gearbox removal requirements.
- For best results, ensure the clutch hydraulic system is bled correctly after installation.
- Where applicable, inspect flywheel condition during replacement.
Nationwide delivery available across South Africa. If you would like us to verify fitment, send your VIN and a photo of your existing clutch/CSC where possible.
